Dake Mitering Bandsaws

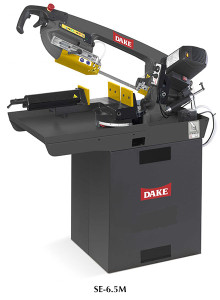

SE-6.5M Mitering bandsaw with dual operating modes and hydraulic controlled down feed. 2.5HP, 120V motor with up to 60°right mitering capabilities. Ergonomic design for operator’s comfort and control. Variable speed with rotary adjusting wheel and “Constant speed control” Maintains constant speed to prevent bog downs when cutting.
SE-8.5M Heavy duty, low production mitering saw that comes with one standard Bi-metal blade. Dual operating modes and hydraulic controlled down feed. 1.75HP, 220V motor with up to 60°right mitering capabilities. Ergonomic design for operator’s comfort and control. Horizontally mounted guide arms for more rigidity and straightest cuts.
SE-10DM Heavy duty, low production saw that comes with one standard Bi-metal blade. Hydraulic controlled downfeed with automatic shut off at the end of the cut. 2.75HP, 220V motor with up to 60°right mitering capabilities. Dual operating modes with head descent control lock switch. Pre-set the down feed and shut switch so down feed does not need resetting after each cut.
- Hydraulic controlled down feed with manual return
- Automatic shut off at the end of the cut
- Dual operating modes, manual cutting or head feed cutting
- Powerful, manual clamping vise, with quick release lever for rapid vise opening and closing action for fast material size change over. The vise clamps material firmly.
- Ergonomic designed for operator’s comfort and control
- Motor gearbox combination bolted to the bow for less vibration
- Variable speed with rotary adjusting wheel and “Constant speed control” Maintains constant speed to prevent bog downs when cutting
- CE Certified electronics. Low voltage switches. Thermo over load protection, low voltage protection with low voltage trigger motor start switch
- Blade tensioning is done via. “Go No Go” tensioning system with LED taking the guess work out of tensioning. Saw will not run if blade tension is not correct
- Miters up to 60° right. Mitering pre-sets with slide stops makes set up fast and has precise with miter scale for all angles in between. The head turns-the material doesn’t
- Horizontally mounted guide arms for more rigidity and straightest cuts. Guides are rollers with carbide inserts that are fully adjustable and replaceable
- Electric coolant pump and self-contained coolant system
- 120 volt means you can use it most anywhere
- Steel fabricated base, and stock stop gauge, one Bi-metal blade
| Item No. | SE-6.5M | SE-8.5M | SE-10DM |
| Capacity | 6.5" Round | 8-1/2" Round | 10" Round |
| Horsepower | 2.5 | 1.75 | 2.75 |
| Voltage | 120V | 220V 3 Phase | 220V 3 Phase |
| Max. Blade Speed | Variable | 230 FPM | 230 FPM |
| Blade Width | 3/4" | 1" | 1" |
| Blade Length | 84-1/4" | 101" | 108" |
| Blade Speed | 114-262 FPM | 114-230 FPM | 115-230 FPM |
| Solid Round 90º Capacity | 6.5" | 8-1/2" | 10" |
| Solid Round 45º Right Capacity | 4-1/4" | 6-3/4" | 8" |
| Solid Round 60º Right Capacity | 3" | 4-1/4" | 5" |
| Solid Square 90º Right Capacity | 6-3/4" | 7-3/4" | 7-1/2" |
| Solid Square 45º Right Capacity | 4-1/2" | 6-3/4" | 7-1/2"/6-34" |
| Solid Square 60º Right Capacity | 3" | 4-1/4" | 5" |
| Solid Rectangle 90º Capacity | 7-3/4" x 3" | 10-3/8" x 7-3/4" | 10-1/2" x 7-3/4" |
| Solid Rectangle 45º Right Capacity | 6" x 4-1/4" | 7-3/4" x 6-1/4" | 8-1/4" x 3-1/8" |
| Solid Rectangle 60º Right Capacity | 4" x 2-3/4" | 4-1/2" x 4" | 4-3/4" x 5-1/4" |
| Worktable Height | 37" | 37" | 37" |
| Height | 65" | 71" | 74" |
| Floor Space | 35" x 48" | 33" x 58" | 28" x 66" |
