Flexbar Magnetic Bases
Flexbar® magnetic bases are manufactured, machined, powder coated and assembled in the U.S. from start to finish. Our goal is to produce a superior American-made precision tool. Flexbar® bases have 180 pounds of pulling force, all metal part construction, and are made to precision ground tolerances.
Features:
- 180 pounds of pulling power - much stronger than the average 100-110lb. base.
- Front handle assembly parts are made from nickel plated zinc die castings
- Back and bottom rails are surface ground square and parallel to within .001"
- Main body has durable blue powder coated finish
- On/off switch
- Base can be mounted vertically as well as horizontally
- V Bottom base allows mounting on cylindrical surfaces
- Base without arms is 3-1/2" long (with on/off switch), 2" wide, 2" tall
- Models 10995 & 10996 - The main column is .475 x 7", clamping rod is .390 x 7". Stem hole is 5/32", lug stem is .225"
Specifications:
| Item Number | Type | Dimensions (L x W x H) | Approx. Adhesive Power | Connection Thread |

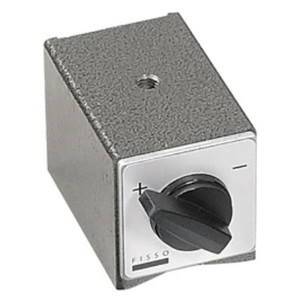

| 10998 | Switch Magnet | 60 x 50 x 55 mm | 168 lbs. | M8 |
| 14850 | Switch Magnet | 75 x 50 x 55 mm | 202 lbs. | M8 |
| 14856 | Switch Magnet | 120 x 50 x 55 mm | 269 lbs. | M10 x 1.25 |
| 14851 | Pot Magnet | ∅40 x 30 mm | 67 lbs. | M8 |
| 14853 | Switch Magnet | 34 x 30 x 35 mm | 67 lbs. | M6 |
| 14854 | Pot Magnet | ∅30 x 25 mm | 38 lbs. | M6 |
| 18418 | Vacuum | ∅88 x 27 mm | - | M8 |
| 14855 | Granite Sliding | 150 x 120 x 50 mm | - | M8 |
# 10995 - Magnetic Base with Standard Arms
# 10996 - Magnetic Base with Arms with Fine Adjustment Arm
# 10997 - Magnetic Base with Flexbar Arm
