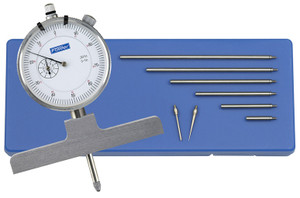

Fowler 0-22" X-Depth Dial Depth Gage - 52-125-006-1

Fowler 0-22" X-Depth Dial Depth Gage - 52-125-006-1

Fowler's 0‑22" Dial Depth Gages comes with six interchangeable rods with a 0—22" capacity, carbide contact point and 2 extra points for small applications. Provides rapid measurement of hole depths.

Features:

• Measurements automatically registered directly on dial face in .001" graduations. The dial indicator can be easily adjusted for zero setting.
• Graduation: .001"
• 0-1" travel indicator.
• Accuracy of the dial indicator meets Federal specifications.
• Rod extensions of 1", 2", 3", 4", 5" and 6" are included. Rods can be connected together for a full 0—22" capacity.
• Includes 2 extra points for small hole applications; one 0.078" dia. x 1" long and one needle point x 1" long.
• Base is hardened steel, ground and microlapped for accuracy.
• Standard 4-48 thread removeable carbide ball contact point.
• Rack spindle and pinions are hardened stainless steel to ensure long wear and continuing accuracy.
• Includes shop hardened case

Specifications:
