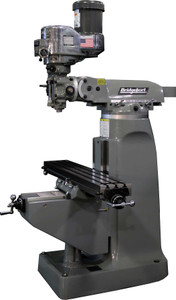

Hardinge Bridgeport Series I - Standard Package 4
Brand: Bridgeport Milling Machine- ID:
- 384414
Hardinge Bridgeport Series I - Standard Package 4
Inch Screws and Dials, Erickson #30 Quick Change Spindle, Chrome Ways and Gibs, One-Shot Lube, No Power Feed
The Bridgeport® Series I Standard Knee Mill is the most popular milling, drilling and boring machine in the market, with over 370,000 machines built over the past 70 years. It continues to fulfill the industry’s need for an accurate, reliable, and versatile mill. It features an innovative airflow cooling design that eliminates the need for external fans to prolong bearing life and prevent expansion from heat build-up. A full range of accessories are available, including optional chrome-plated ways and gibs, to ensure that the machine will last a lifetime. Hardinge® is the only authorized provider of Bridgeport knee mills, parts and service.
Standard Features
- One-Shot Lubrication
- SystemChrome-Plated Ways and Gibs
- Color—Machine Tool Gray
Optional Features
- 2 or 3-Axis Digital Readout
- Power Drawbar for R-8 or #30 Quick-Change Spindle
- Worklight Electrics—NFPA/NEMA-12 Standards, UL listed
Technical Data
| Range | |
| Table travel (X-Axis) | 36" (914 mm) with Power Feed |
| Table travel (X-Axis) | 31" (787 mm) without Power Feed |
| Saddle Travel (Y-Axis) | 12" (305 mm) |
| Quill Travel | 5" (127 mm) |
| Knee Travel (Z-Axis) | 16" (406 mm) |
| Ram Travel | 12" (305 mm) |
| Throat Distance (Min.) | 6.75" (171 mm) |
| Throat Distance (Max.) | 18.75" (476 mm) |
| Spindle (2J Head) | |
| Power Rating 30 min. Duty Cycle | 3 HP (2.2 kW) |
| Power Rating Continuous | 2 HP (1.5 kW) |
| Tooling | R-8 Collets |
| Speed Range | |
| High (Infinitely Variable) | 500 – 4,200 RPM @ 60 Hz |
| Low | 60 – 500 RPM @ 60 Hz |
| Power Quill Feed | 0.0015"/rev (0.038 mm) |
| Manual Adjust | 0.003"/rev (0.076 mm) |
| Manual Adjust | 0.006"/rev (0.152 mm) |
| Worktable | |
| Standard | 49" x 9" (1,245 x 299 mm) |
| T Slot center distance | 3 @ 2.5" (64 mm) |
| T-Slot Size | 0.625" (16 mm) |
| Height Above Floor (Max.) | 47.25" (1,200 mm) |
| Weight of Workpiece (Max.) | 750 lb (340 kg) |
| Machine Size | |
| Height | 87" (2.21 m) |
| Weight | 1,930 lb (875 kg) |
| Weight (Shipping) | 2,075 lb (941 kg) |
| Floor Space | 7' x 10' (2.13 x 3.0mm) |
Note: You must specify voltage at checkout
- 208V 60HZ
- 230V 60HZ
- 460V 60HZ
