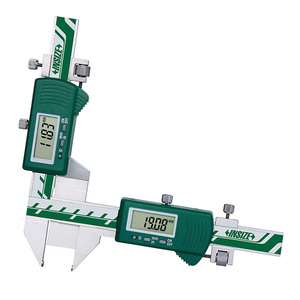

Insize Digital Gear Tooth Calipers
- Measure the tooth thickness by positioning the tooth height (for tooth height>.039")
- Carbide tips.
- Buttons: zero, on/off, inch/mm.
- Automatic power off, move the digital unit to turn on power.
- Resolution: .0005"/0.01mm
- Accuracy of Height Measurement: ±.0015"
- Accuracy of Thickness Measurement: ±.0015"
- Total Accuracy: ±.0015"
- Battery CR2032
- Made of stainless steel

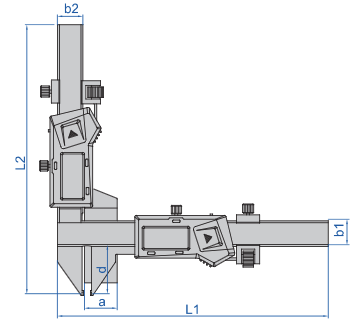

| Item No. | L1 | L2 | a | b1 | b2 | d |
| 1181-M25A | 6.693" | 6.516" | .827" | .630" | .630" | 1.201" |
| 1181-M50A | 8.661" | 7.480" | 1.988" | .630" | .630" | 2.165 |
