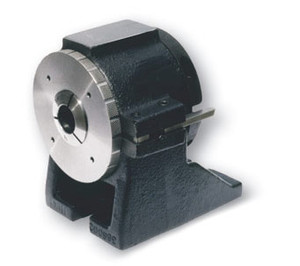

Kalamazoo 5-C Collet Index Fixture - 5C-001

Kalamazoo 5-C Collet Index Fixture   Model 5C

Made in USA!

• Index fixture with 24 space ring and draw nut.(index rings 0-36 spaces available)
• For drilling, milling, grinding and locating angles.
• Index ring easily changed by pulling spindle out and sliding new ring on.
• Use in vertical position with angle plate.
• Precision ground spindle.
• Rugged, Plate can be bolted to top for drill bushing.
• Quality built in Kalamazoo, MI
• Model : #5C complete with 24 space index ring and draw nut.

Precision steel spindle, hardened and ground, 5C taper.
Top ground parallel with bottom, back edge parallel with spindle nose.
Spindle can be locked in any position without index pin engaged.
Numerous index combinations by easy changing of index ring.
Chucks can be used with ring.
Chucks can be used with Stub Arbor (1" 10 thread).
3-1/4" from base to center line.
