Kurt DoveLock Dovetail 5 Axis Vise - DTR10



Product Description

ID: 323981

Kurt

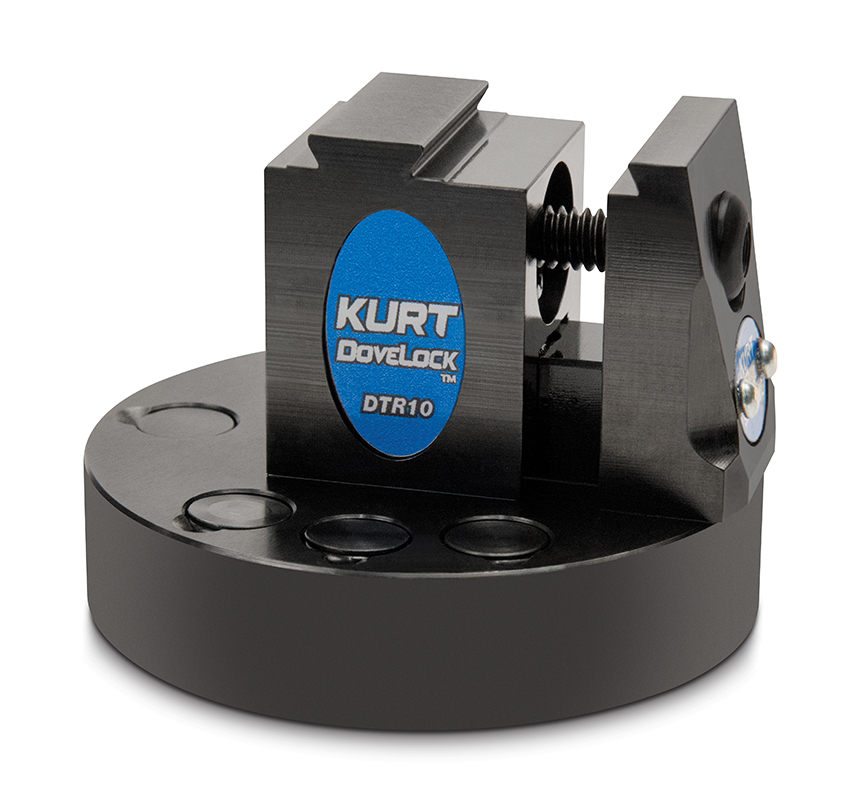

Kurt DoveLock Dovetail 5 Axis Vise - DTR10


Kurt's DoveLock DTR10 5 axis dovetail vise is designed for today's aggressive machining needs. Manufactured from pre-hardened 4140 steel, this dovetail workholding solution maintains part rigidity and minimizes deflection or clamp creep when under high machining pressure.


Deflection is reduced by the unique KURT® design which places the clamping screw high in the clamping envelope. Additional anti-deflection control is provided by the movable jaw slide, which is retained within the stationary jaw.


Features:

  • DoveLock™ dovetail vise for 4 and 5 axis CNC machining with access to five sides of the workpiece
  • Manufactured from pre-hardened 4140 steel, the DoveLock maintains part rigidity and minimizes deflection or clamp creep when under high machining pressure
  • Reversible models allow for a wide range of dovetail widths
  • High clamping screw location reduces deflection
  • Movable jaw slide is retained within the stationary jaw and creates more anti-deflection control
  • Embedded locating pin keeps part location accurate when applying side load pressure

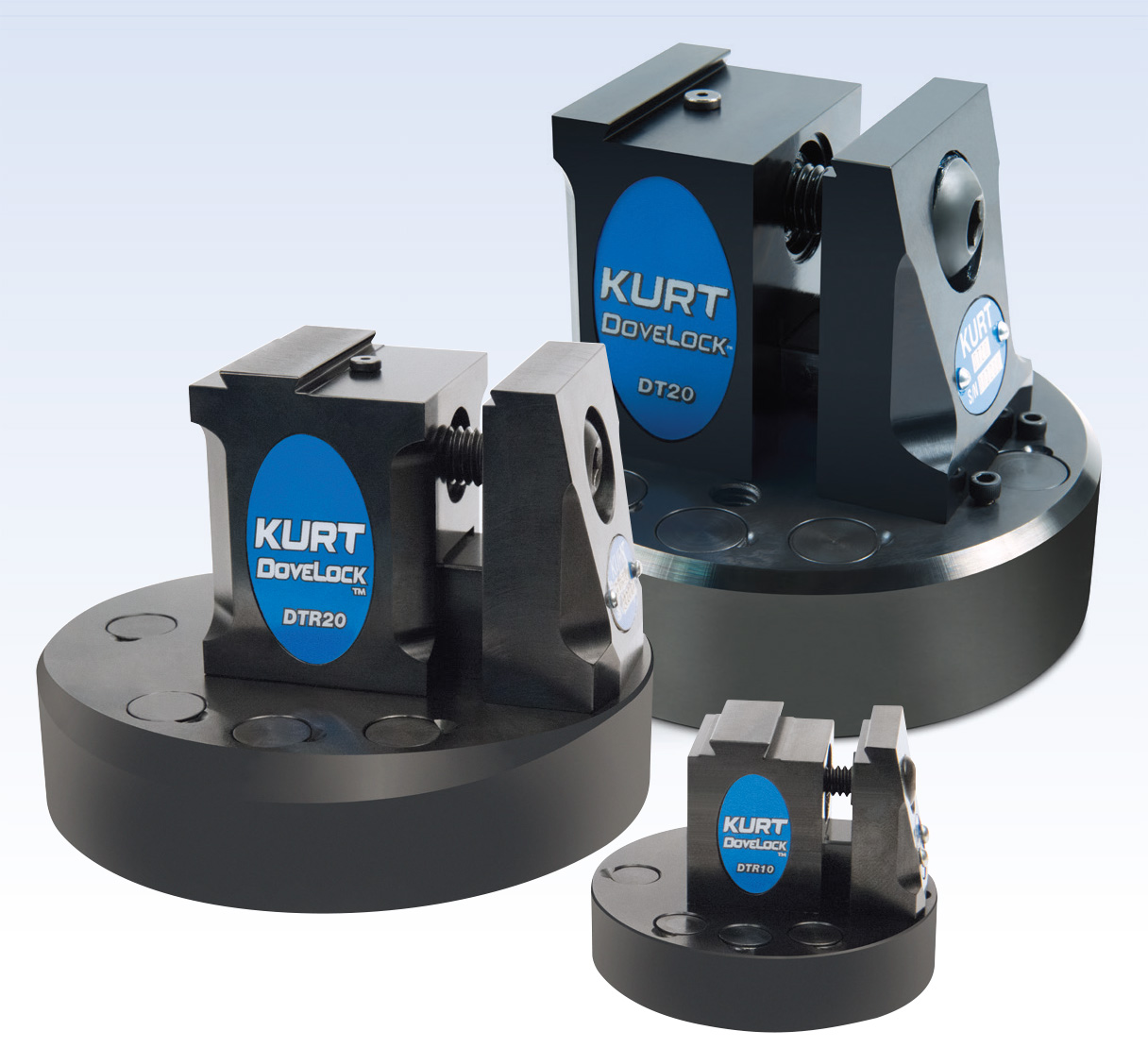

  • Models available: Standard model DT20. Reversible jaw models DTR20 and DTR10
  • Mounting base has pre-configured hole pattern to fit most machines
  • Easy part prep requires only 1/8" of material to hold workpiece in place
  • Movable and stationary jaws are matched pairs
  • Lifetime Iron Clad Warrant



CLAMP FORCE DT20 DTR20
Inch Pounds Pounds of Force
80 1,000
160 2,000
240 3,000
320 4,000





See all Kurt DoveLock Dovetail 5 Axis Vises


Item Number: DTR10
