Mahr Micromar 40 EWRi-V Digital Micrometer, 0 - 1" Range - 4157150
Brand: Mahr- SKU:
- 4157150
- ID:
- 698626
$2,095.00
Mahr Micromar 40 EWRi-V Digital Micrometer, 0 - 1" Range - 4157150
- Universal adjustment to different workpiece and measurement situations using individual interchangeable measuring anvils.
- High contrast digit display
- Stainless spindle is hardened throughout and ground
- With mounting bores for measuring anvils with a shaft Ø 3.5 mm
- QUICK DRIVE
- Sliding spindle
- Ratchet is integrated in the thimble
- Lacquered steel frame, heat insulated
- Thread flanks and spherical measuring anvils (optional accessories) can also be used.
- IP protection category: IP 65
- Data interface: Integrated Wireless
- DIN 863-3
- Measuring range mm 0 - 25 mm mm
- Resolution mm/inch 0.001 / .00005"

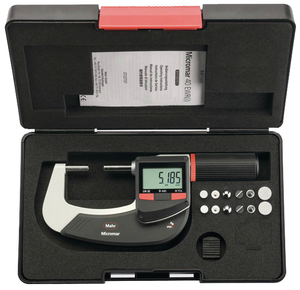

- Package contains: battery, test certificate, instruction manual, case
Specifications:
- Measuring range: 0 - 1"
- Resolution mm/inch: 0.001 / .00005"
- Error limit µm: 4 µm
- Measuring force (N): 5 - 10
- Battery type: CR 2032 (3V Lithium)
- Spindle diameter: 6.5 mm
- Spindle thread pitch_mm: 5mm
