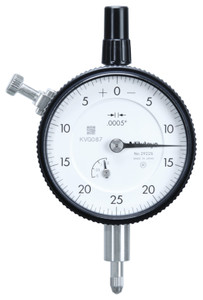

Mitutoyo Dial Indicator, AGD/ANSI, Lug Back, 0.125" Range, 0.0005" Graduation - 2922S
Brand: Mitutoyo- SKU:
- 2922S
- ID:
- 356435
$124.00
Mitutoyo Dial Indicator, AGD/ANSI, Lug Back, 0.125" Range, 0.0005" Graduation - 2922S
This is a standard, inch dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
Specifications:
| Range | 0.125 Inch |
| Accuracy | ±0,0005" |
| Range per rev. | 0.05" |
| Graduation | 0,0005" |
| Scale | 0-25-0 |
| Measuring force | 0,4 - 1,8 N |
| Repeatability | ±0,0001" |
| Stem | 9.52 mm / 0.375" |
| Mass | 164 g |
| Accuracy First 1 Rev | ±0,0005" |
| Contact point | Carbide tipped, thread: 4-48UNF |
| Delivered | with certificate of inspection, limit indicators |
| Balanced dial | Yes |
| Functions | ANSI/AGD type |
| Inch-Metric | Inch |
