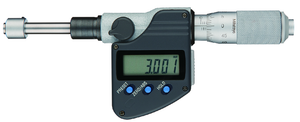

Mitutoyo Digital Micrometer Head, 0-25mm - 350-261-30
Brand: Mitutoyo- SKU:
- 350-261-30
- ID:
- 385667
| Range | 0 - 25 mm |
| Stem | Plain |
| Spindle Face | Flat |
| Stem Dia. | 12/18mm |
$487.95
Mitutoyo Digital Micrometer Head, 0-25mm - 350-261-30
This Micrometer Head has a 25 mm range and a 12 mm stem, and offers the following benefits:
- You can integrate it into machinery and measuring instruments.
- Its excellent water and dust resistance (IP65 protection level) lets you use it in machining situations that include splashing coolant fluid (except types with threaded stem).
- Measurement values are clearly displayed in 0.001 mm increments.
Specifications
| Range | 0 - 25 mm |
| Spindle end | Flat |
| Stem | Plain |
| Stem Ø | 12/18 mm |
| Fixture thickness for clamp nut | - |
| Mass | 235 g |
| Measuring spindle | With spindle lock, ø 6,35 mm, spindle pitch 0,5 mm |
| Maximum Permissible Error J MPE | ±2 µm |
| Power supply | Battery SR-44 |
| Digital step | 0,001 mm |
| Display | LCD character height 7.5 mm |
| Battery life | approx. 2,4 years |
| ZERO/ABS | Yes |
| Auto Power OFF after 20 min. non use | Yes |
| 2 x PRESET | Yes |
| Data output | Yes |
| HOLD | Yes |
| Digital/Analog | Digital |
| Remarks | IP65, w/ non-rotating measuring face w/o ratched stop |
| Inch-Metric | Metric |
