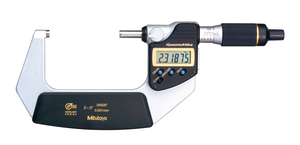

Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 2-3" - 293-182-30
Brand: Mitutoyo- SKU:
- 293-182-30
- ID:
- 366015
| Range | 2 - 3" |
| Resolution | .00005in/0.001mm |
| Accuracy | .0001in |
| SPC Output | Yes |
$446.60
Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 2-3" - 293-182-30
This is an IP65 micrometer offering movement four times as fast as a standard micrometer. It presents you with the following benefits:
- Faster measurement is achieved by using a coarser thread which feeds the spindle by 2 mm per thimble rotation.
- Extraordinary battery life of 2,4 years
- Outstanding accuracy
- Ratched thimble mechanism ensures easy single-handed or stand operation.
- Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
Specifications:
| Accuracy | ±0,00005" |
| Resolution | 00005in/0.001mm |
| Flatness | 0.3µm/.000012” |
| Range | 2-3" |
| Measuring surfaces | Carbide-tipped, micro-lap finish |
| Battery life | Approx. 2.4 years under normal use (8 months: over 100mm models) |
| Dust/Water protection level | IP65 |
| ORIGIN (until 100 mm) | Yes |
| Auto Power OFF | Yes |
| Zero/ABS | Yes |
| Function lock | Yes |
| Data output | Yes |
| Low voltage alarm | Yes |
| HOLD | Yes |
| Digital/Analog | Digital |
| Inch-Metric | Inch/Metric |
| Scale | Thimble and sleeve satin chrome finish, ø19,3 mm |
| Parallelism | 0,00008" |
| Measuring spindle | With spindle lock, ø6.35mm, spindle pitch 2 mm |
See all Mitutoyo QuantuMike Series 293 Coolant-Proof Micrometers
