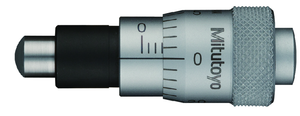

Mitutoyo Micrometer Head, 0-6.5mm - 148-322
Brand: Mitutoyo- SKU:
- 148-322
- ID:
- 385724
| Range | 0 - 6.5 mm |
| Stem | Plain |
| Spindle Face | Spherical (SR4) |
| Stem Dia. | 9.5 mm |
$86.95
Mitutoyo Micrometer Head, 0-6.5mm - 148-322
These micrometer heads are a standard, small-sized type with a 6,5 mm and 13 mm measuring range. They offer the following benefits:
- Fine spindle feed of 0,25 mm/rev for fine adjustment.
Specifications
| Range | 0 - 6.5 mm |
| Spindle end | Spherical (SR4) |
| Stem | Plain |
| Stem Ø | 9.5 mm |
| Fixture thickness for clamp nut | - |
| Mass | 30 g |
| Measuring surfaces | Hardened steel (> 60 HRC) |
| Spindle pitch | 0,25 mm |
| Maximum Permissible Error J MPE | ±2 µm |
| Graduation | 0.001 mm |
| Digital/Analog | Analog |
| Inch-Metric | Metric |
See all Mitutoyo Micrometer Heads Series 148 (Fine Spindle Feeding of 0.25 mm / rev)
