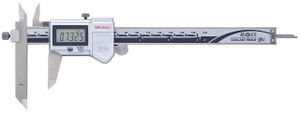

Mitutoyo Offset Caliper Series 573, 536 - ABSOLUTE Digimatic and Vernier Type

Mitutoyo Offset Caliper Series 573, 536 - ABSOLUTE Digimatic and Vernier Type

Features:

• Main scale jaw can slide up and down to facilitate measurement of stepped sections. (Hard-to-get-at dimensions such as A, B, C can be accurately measured.)
• With depth bar
• With SPC data output. (series 573)
• Supplied in fitted plastic case

Technical Data:

• Accuracy: Refer to the list of specifications.
• Resolution*: 0.01mm or .0005"/0.01mm
• Graduation**: 0.05mm
• Display: LCD
• Length standard: ABSOLUTE electrostatic capacitance type linear encoder
• Max. response speed*: Unlimited
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 3.5 years under normal use

*Digital models **Analog models

Function of Digital Model:

• Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, Counting value composition error

Optional Accessories for Digital Model:

• 05CZA624 - SPC cable with data switch (1m/40")
• 05CZA625 - SPC cable with data switch (2m/80")
