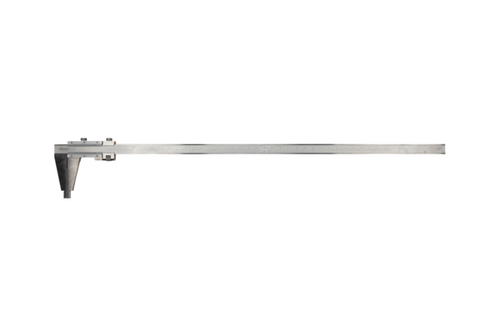

Mitutoyo Vernier Caliper, Nib Style Jaw, Fine Adjustment, 0(20)-1000mm/0(1”)-40" - 160-155
Brand: Mitutoyo- SKU:
- 160-155
- ID:
- 403108
| Range | 0 (20) - 1000 mm / 0 (1”) - 40" |
| Accuracy | ±0.07 mm |
| Graduation | 0.02 mm /.001” |
$1,860.00
Mitutoyo Vernier Caliper, Nib Style Jaw, Fine Adjustment, 0(20)-1000mm/0(1”)-40" - 160-155
These vernier calipers with nib style jaws come with or without fine adjustment.
They offer you the following benefits:
- For the metric only models the top offset vernier scale allows you to directly read the inside dimensions without having to add the nib widths.
- Main scale and vernier scale satin chrome finish gives you high readability.
Technical Data:
| Range | 0 (20) - 1000mm / 0 (1”) - 40" |
| Inside measuring from | 20.1 mm |
| Accuracy | ±0,07 mm |
| Graduation | 0,02 mm/ 0,001" |
| Mass | 3500 g |
| Delivered | In a box |
| Digital/Analog | Analog |
| Inch-Metric | Metric/Inch |
| With upper locking screw | Yes |
| Functions | With fine adjustment |
| L | 1240 mm |
| R | 10 mm |
| a | 172 mm |
| b | 140 mm |
| c | 24 mm |
| d | 32 mm |
| e | 17 mm |
| f | 10 mm |
See all Mitutoyo Vernier Caliper Series 160 - with Nib Style Jaws and Fine Adjustment
