Phase II Digital Rockwell Hardness Tester w/ Touchscreen - 900-410

Brand:   Phase II
SKU:
900-410
ID:
327177
$5,844.20
Current Stock:
Adding to cart… The item has been added

Phase II

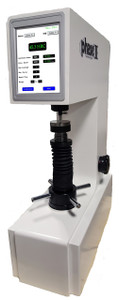

Phase II Digital Rockwell Hardness Tester w/ Touchscreen
900-410


The 900-410 Digital Rockwell Hardness Tester can be used directly to measure the most popular regular Rockwell hardness scales and it can quickly convert that hardness value into HB, HV, HLD, HK and many other scales. Loaded with many useful features such as ultra precise results, wide measuring range, scale and test force selectable, automatic main test force loading/unloading, high resolution digital display and USB data storage. The 900-410 is suitable for testing hardness of carbon steel, alloy steel, cast iron, non-ferrous metals and engineering plastics. The tester meets the following standard: ASTM E18, ISO 6508-2, and BS EN ISO6508-2.


Included Accessories:

  • Large Anvil
  • Small Diameter Anvil
  • V-shaped Anvil
  • Five Test Blocks
      1. One each, HRA 70-85
      2. One each, HRB 75-95
      3. One each, HRC 25-35
      4. One each, HRC 40-50
      5. One each, HRC 55-65
  • 120 deg. Diamond Indentor
  • 1/16" Carbide Ball indentor
  • Storage Box


Options:


Key Performance Parameters:

Preload 98.1N (10kgf)
Total test force 588.4N(60kgf),980.7N(100kgf),1471N(150kgf),
Scales HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH,
HRK, HRE, HRL, HRM, HRP, HRR, HRS, HRV
Load dwell duration 2~50s
Resolution 0.1HR
Display High definition backlight LCD
Operation Menu selectable push buttons
Auxiliary functions Upper/lower limits setting & alarm, Scale conversions: HV & HB
Data output USB memory stick
Testing Capacity Vertical: 8.00”
Throat Depth: 7.87”
Dimensions Height: 22.04"
Width: 8.07"
Depth: 31.49"
(560mm x 205mm x 800mm)
Power supply single phase, AC, 110V, 50~60Hz, 4A
Gross weight 175lbs (80kg)

Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.
