Renishaw Machine Tool Probes

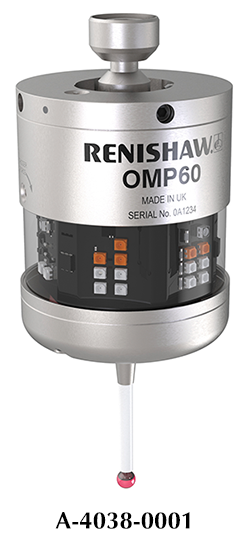

OMP40-2/ OMP60 Probes
Ultra compact 3D touch-trigger probe with optical signal transmission. Used for workpiece set-up inspection on small and medium machining centres and the growing number of high speed machines fitted with small HSK and spindle tapers.
Compatibility with all Renishaw optical receivers enables users to easily upgrade existing installations.
- Proven kinematic design
- Exceptional resistance to light interference with modulated transmission
- 360° transmission envelope
- Compact design
- Various activation options and adjustable trigger force
- 1.00 µm 2σ repeatability
The RMP40 is the smallest frequency hopping radio spindle probe in the world. Operating within the globally recognised 2.4 GHz ISM band, the RMP40 is suited for operation on all sizes of machine.
The robust transmission protocol and small body makes the RMP40 the ideal choice for multi-tasking applications where the line-of-sight between probe and interface cannot always be maintained.
- Proven kinematic design
- Secure frequency hopping spread spectrum (FHSS)
- Globally recognized 2.4 GHz waveband — compliant with radio regulations in all major markets
- Ultra compact design
- 1.00 µm 2σ repeatability
This RMP60 Probe includes a quick start guide, batteries and tool kit only. It is configurable to radio/time, spin/spin, spin/time or (shank).
The RMP60 is a compact spindle probe with radio signal transmission and offers automated part set-up and in-cycle gauging on machining centres including 5-axis machines.
The RMP60 combines Renishaw’s traditional kinematic resistive probe mechanism with a secure and unique frequency hopping transmission protocol; ideal for the modern machine shop and harsh environments where line-of-sight between probe and interface is not always possible.
- Proven kinematic design
- Secure frequency hopping spread spectrum (FHSS)
- Globally recognized 2.4 GHz waveband – compliant with radio regulations in all major markets
- Compact design
- Various activation options and adjustable trigger force
- 1.00 µm 2σ repeatability
