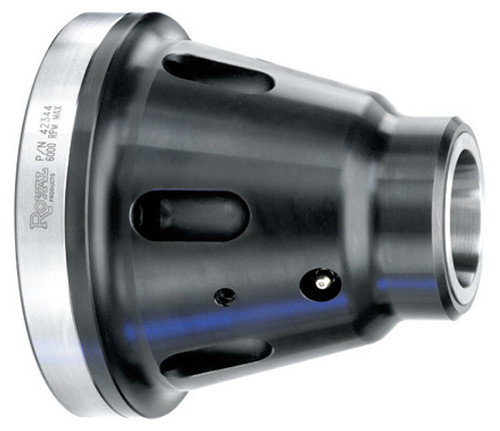

Royal Accu-Length CNC Collet Chuck #42345, 3J, A2-5 Spindle
Brand: Royal Products- ID:
- 354062
| Model | 42345 |
| Collet Type | 3J |
| Spindle | A2-5 |
| Capacity | 1-3/4" |
$7,495.00
Royal Accu-Length CNC Collet Chuck #42345
3J, A2-5 Spindle
Features:
- Chucks eliminate part pullback resulting in precise z-axis positioning
- Excellent for bar feed and sub-spindle applications
- Guaranteed accurate to 0.0003" TIR
- Optimized for maximum rigidity and exceptional tool clearance
Specifications:
| BRAND | ROYAL |
| MODEL # | 42345 |
| COLLET TYPE | 3J |
| SPINDLE TYPE | A2-5 |
| TYPE | Accu-Length |
| CAPACITY | 1-3/4" |
| TAPER | A2-5 |
| TIR | 0.0003" |
| TIR REPEATABILITY | .0003" |
| WEIGHT | 22 lbs. |
| COUNTRY OF ORIGIN | UNITED STATES OF AMERICA |
| SHIPPING RESTRICTIONS | UPS SHIP (DROP SHIP ITEM) |
For more info, visit www.p65warnings.ca.gov.
