Samchully HS Series 3-Jaw, High-Speed, Open-Center Power Chuck for Versatile Turning, 6" Size - HS-06V1
Brand: Samchully- SKU:
- HS-06V1
- ID:
- 887454
Samchully HS Series 3-Jaw, High-Speed, Open-Center Power Chuck for Versatile Turning, 6" Size - HS-06V1
The HS Series Power Chuck is a standard, wedge-style 3-jaw open-center chuck designed for high-speed machining applications. Ideal for general-purpose turning across a variety of industries, this series delivers dependable performance and precision clamping for both bar work and shaft work.
Technical Features:
Engineered with a durable wedge mechanism, the HS Series ensures strong and consistent clamping force transmission. The open-center design allows for through-hole machining, accommodating bar-fed operations and shaft components. With precision-hardened core components and optimized jaw stroke ranges (up to 10.5mm), the HS Series maintains chuck longevity and reliable performance—even at high spindle speeds. Available in sizes ranging from 135mm to 304mm diameter, the HS Series supports thru-hole sizes up to Ø91mm and max gripping forces up to 144kN. Compatible with standard rotary hydraulic cylinders for flexible and seamless machine integration.

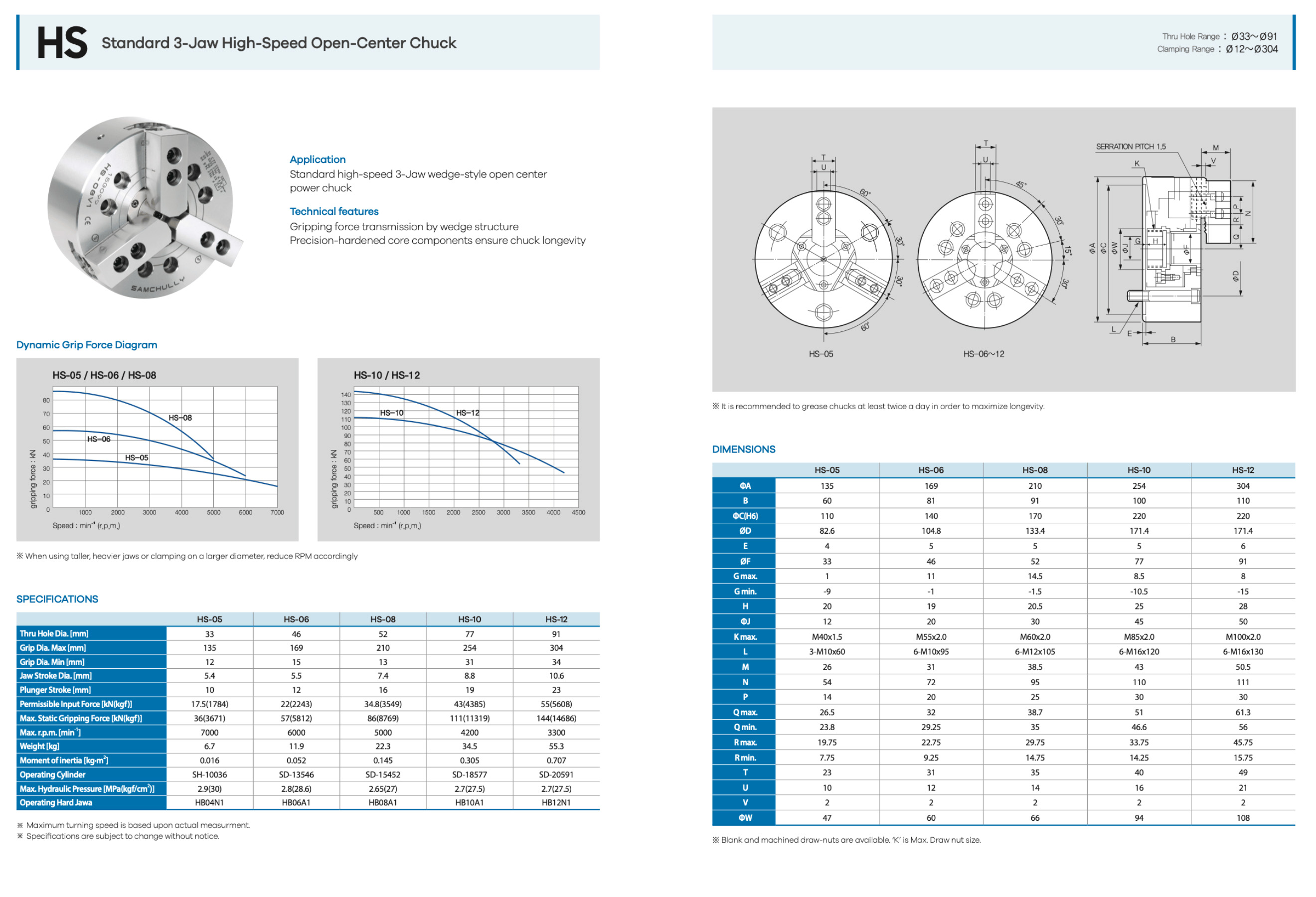

View the HS Series 3-Jaw Open-Center Power Chuck Specifications
Specifications:
| SKU | HS-06V1 [BLANK] |
| Includes | Mounting Bolts; Blank Drawnut; Soft Top Jaws; Master Jaws; T-Nuts; Handle |
| Kitagawa™ Dimensionally Equivalent | B-206 |
| Through-hole Dia. (mm) | 46 |
| Grip Dia. Max (mm) | 169 |
| Grip Dia. Min. (mm) | 15 |
| Jaw Stroke Dia. (mm) | 5.5 |
| Plunger Stroke (mm) | 12 |
| Max. Permissible Input Force [kN(kgf)] | 22(2243) |
| Max. Static Gripping Force [kN(kgf)] | 57(5812) |
| Max. R.P.M. | 6000 |
| Weight [kg] | 11.9 |
| Series | HS |
| Size | 6" |
| Jaws | 3 |
See all Samchully HS Series 3-Jaw, High-Speed, Open-Center Power Chucks for Versatile Turning
