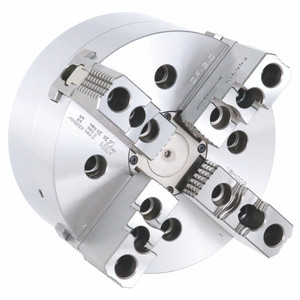

Samchully IDF Series 2+2 Jaw Compensating Self-Centering Power Lathe Chuck, 260mm Size - IDF-260
Brand: Samchully- SKU:
- IDF-260
- ID:
- 895430
| Size | 260 mm |
Samchully IDF Series 2+2 Jaw Compensating Self-Centering Power Lathe Chuck, 260mm Size - IDF-260
High precision self-centering 4-Jaw power chuck (2+2 jaw)
The Samchully IDF self-centering power chuck is engineered for high-precision internal clamping of thin-walled or easily deformable components. Its specialized 2+2 jaw configuration ensures consistent four-point internal contact, evenly distributing clamping force and maintaining concentricity. Ideal for delicate workpieces that require secure ID holding, the IDF chuck minimizes distortion while maximizing accuracy and process stability.
Technical Features:
The IDF series chuck features 2mm of built-in compensation to automatically adapt to minor inconsistencies in bore size or roundness. A 12 mm plunger stroke provides smooth, responsive actuation, while the chuck’s gripping force ensures secure internal holding under demanding machining conditions. Fully compatible with standard hydraulic cylinders, the IDF power chuck is a plug-and-play solution for shops looking to expand their clamping capabilities without complex configurations.
- High precision self-centering 4-Jaw power chuck (2+2 jaw)
- Ideal for rectangular and square work pieces self-centering in two axis
- Single wedge actuation does not require dual-piston cylinder 2+2 jaw chuck with 2 independent self-centering jaws
Specifications:
View all specifications: IDF Series Power Chucks Specifications
| Item Number | IDF-260 |
| Jaw Stroke Radial [mm] | 6.2 |
| Compensation [mm] | ±2 |
| Plunger Stroke [mm] | 12 |
| Max. Permissible Input Force [kN(kgf)] | 50(5102) |
| Max. Gripping Force [kN(kgf)] | 130(13265) |
| Max R.P.M [min-¹] | 3200 |
| Operating Cylinder | Y-1530RE |
| Weight [kg] | 43 |
| Moment of Inertia [N·m2(kg·m²)] | 0.39 |
See all Samchully IDF Series 2+2 Jaw Compensating Self-Centering Power Lathe Chucks
