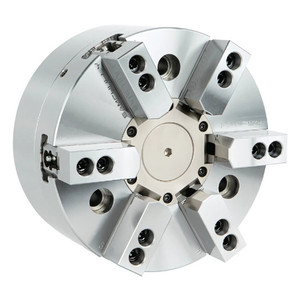

Samchully IDS Series 2+2+2 Jaw Compensating Self-Centering Power Lathe Chuck, 10" Size - IDS-250
Brand: Samchully- SKU:
- IDS-250
- ID:
- 895461
| Size | 10" |
Samchully IDS Series 2+2+2 Jaw Compensating Self-Centering Power Lathe Chuck, 10" Size - IDS-250
This 2+2+2 self-centering power chuck is specifically designed for high-accuracy clamping of thin or easily deformable workpieces. Its unique jaw configuration enables six-point contact (2+2+2), allowing for even distribution of clamping pressure while maintaining precise centering. Ideal for delicate components, this chuck ensures optimal holding without compromising the integrity of the part.
Technical Features:
Featuring a radial jaw stroke of 6mm with 4mm of built-in compensation, this chuck automatically adjusts to compensate for deviations in workpiece geometry. The 12mm plunger stroke provides ample actuation range, while the maximum gripping force of 64kN delivers strong and reliable clamping performance. Designed for convenience and flexibility, it offers 100% compatibility with existing hydraulic cylinders, making it a seamless upgrade for shops seeking both performance and adaptability.
Specifications:
View all specifications: IDS Series Power Lathe Chucks Specifications
| Model | IDS-250 |
| Jaw Stroke Radial [mm] | 6 |
| Compensation [mm] | ±2 |
| Plunger Stroke [mm] | 12 |
| Max. Permissible Input Force [kN(kgf)] | 38(3875) |
| Max. Gripping Force [kN(kgf)] | 64(6526) |
| Max R.P.M [min-¹] | 3000 |
| Operating Cylinder | Y-1530RE |
| Weight [kg] | 39 |
| Moment of Inertia [N·m2(kg·m²)] | 0.35 |
See all Samchully IDS Series 2+2+2 Jaw Compensating Self-Centering Power Lathe Chucks
