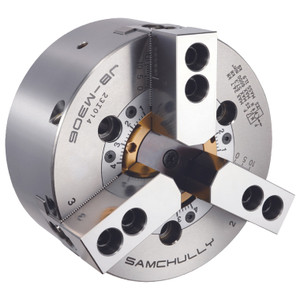

Samchully Jaw Boring Open-Center Hydraulic Chuck, Mega-Bore, Built-In Boring Ring, 10" Size - JBM-310
Brand: Samchully- SKU:
- JBM-310
- ID:
- 880362
Samchully Jaw Boring Open-Center Hydraulic Chuck, Mega-Bore, Built-In Boring Ring, 10" Size - JBM-310
The JBM-310 is purpose-built for turning operations that require fast, repeatable soft jaw boring with high clamping accuracy. Ideal for CNC lathes and turning centers running high-mix production, tight tolerances, or frequent part changeovers, the JBM-310 reduces setup time by allowing jaws to be bored directly in the chuck without removing the chuck or changing the setup. Its open-center body supports bar work and through-spindle machining, making it a versatile solution for both production and precision environments.
Features:
The JBM-310 features Samchully integrated JB-CORE jaw boring system, enabling controlled soft jaw boring in 0.1mm increments for precise gripping diameters and repeatable results. By shaping the jaws after clamping, the chuck minimizes soft jaw wear, improves part accuracy, and extends jaw service life. Designed as a true first-of-its-kind solution, the JBM-310 remains 100% compatible with standard power chuck operation delivering advanced jaw boring capability without changing familiar processes. Built from high-strength alloy steel with precision-hardened internal components, the JBM-310 is engineered for reliable clamping performance and smooth, balanced rotation at elevated spindle speeds.

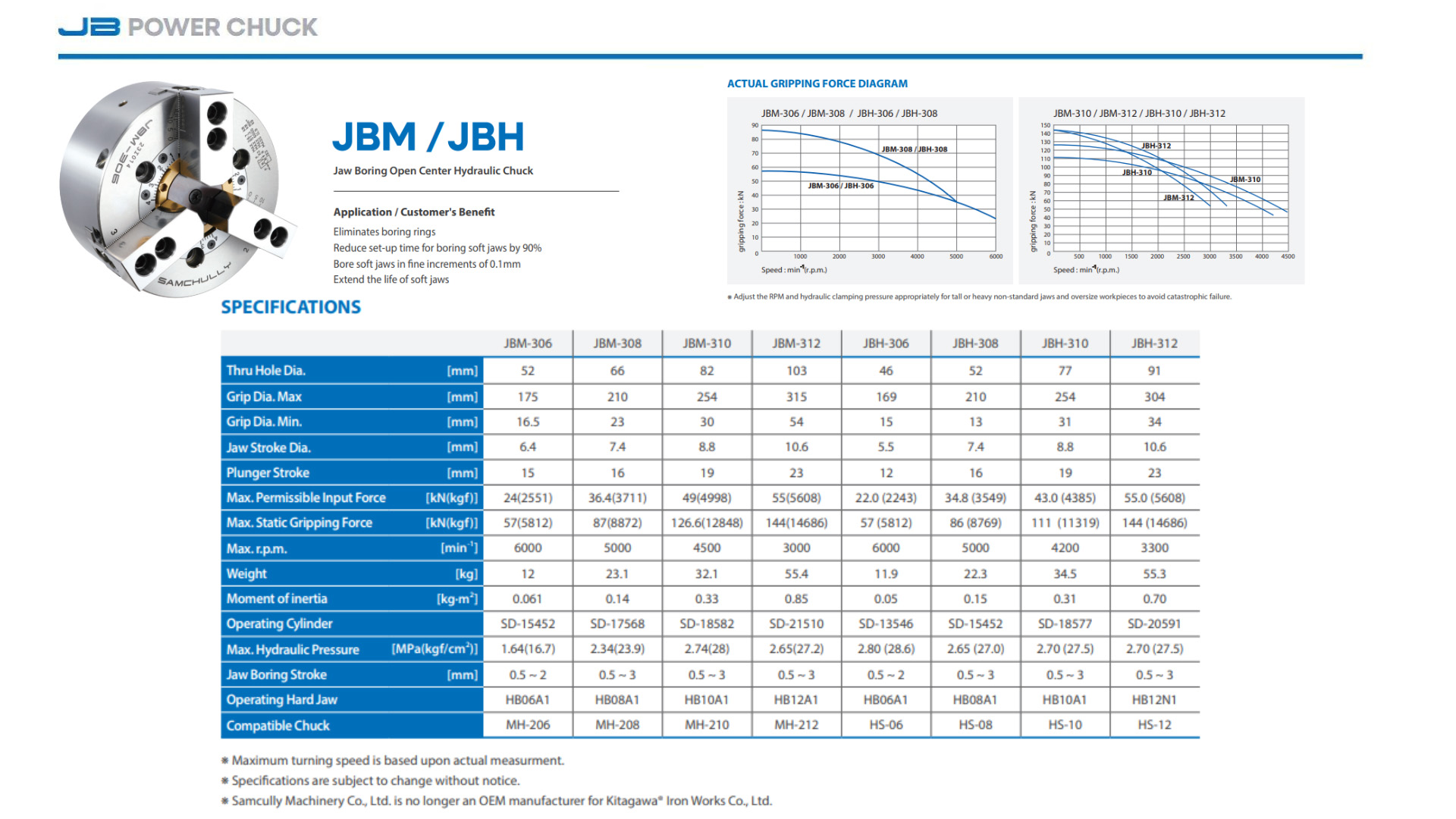

View the Samchully JBM/JBH Jaw Boring Open Center Hydraulic Chuck Specifications
Specifications:
| SKU | JB-M310 [BLANK] |
| Through Hole Dia. | 82 |
| Grip Dia. Max (mm) | 254 |
| Grip Dia. Min (mm) | 30 |
| Jaw Stroke Dia. (mm) | 8.8 |
| Plunger Stoke (mm) | 19 |
| Max. Permissible Input Force [kN(kgf)] | 49(4998) |
| Max. Static Gripping Force [kN(kgf)] | 126.6(12848) |
| Max R.P.M. | 4500 |
| Weight [kg] | 32.1 |
| Series | JB-M |
| Size | 10" |
| Jaws | 3 |
See all Samchully Jaw Boring Open-Center Hydraulic Chucks with Built-In Boring Ring
