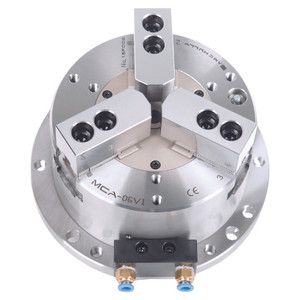

Samchully MCA Series Stationary Pneumatic Chucks
The Samchully MCA Stationary Pneumatic Chuck is designed for precision clamping in automated machining cells, milling fixtures, and rotary transfer systems. Its compact, low-profile design makes it ideal for integration into horizontal and vertical machining centers, as well as custom workholding setups that require repeatable, high-accuracy clamping without manual intervention.
Product Features:
The MCA stationary chuck features a compact, low-profile design with a built-in pneumatic cylinder, eliminating the need for an external actuator and simplifying installation. The series provides reliable, repeatable holding across a Ø10–Ø254 mm chucking range. Built from hardened, precision-ground components, it ensures durability and consistent performance, while the flat base and multiple bolt patterns allow easy integration into fixtures, tombstones, or rotary tables.
Specifications:
View all specifications: MCA Series Stationary Pneumatic Chuck Specifications
| Model | MCA-04 | MCA-06 | MCA-08 | MCA-10 |
| Clamping Force (Pneumatic 6Bar) [kN(kgf)] | 7.5(765) | 21(2140) | 33(3300) | 48(4800) |
| Jaw Stroke Dia. [mm] | 5.2 | 5.2 | 6.3 | 6.3 |
| Grip Dia. Max [mm] | 110 | 165 | 210 | 254 |
| Grip Dia. Min [mm] | 10 | 23 | 30 | 50 |
| Max. Pneumatic Pressure [MPa (kgf/cm²)] | 0.7 (7) | 0.7 (7) | 0.7 (7) | 0.7 (7) |
| Weight [kg] | 7.3 | 16 | 28 | 43 |
