Samchully PAC Series Pneumatic Lathe Chuck for Large Pipe Machining [3/32x90°] - PAC-100560R
Brand: Samchully- SKU:
- PAC-100560R
- ID:
- 895353
Samchully PAC Series Pneumatic Lathe Chuck for Large Pipe Machining [3/32x90°] - PAC-100560R
Engineered for heavy-duty applications, this 470mm air front chuck is purpose-built for large pipe machining, featuring a full spindle through-hole for maximum versatility. With a 191mm bore and 115kN grip force, it’s designed to handle oversized workpieces with precision, speed, and safety.
Application:
Ideal for large pipe and tubular work, especially where a full through-spindle design is required for efficient bar feeding and long-part machining.
Technical Features:
Long-stroke design with rapid traverse and clamping sections for efficient loading Stroke-position detection plate prevents clamping during rapid traverse Built-in pneumatic cylinder with integrated lock valve ensures consistent performance Built-in pressure drop check valve for continuous clamp pressure monitoring.
This air front chuck offers the perfect combination of strength, control, and safety—optimized for modern turning centers and demanding production environments.
Specifications:

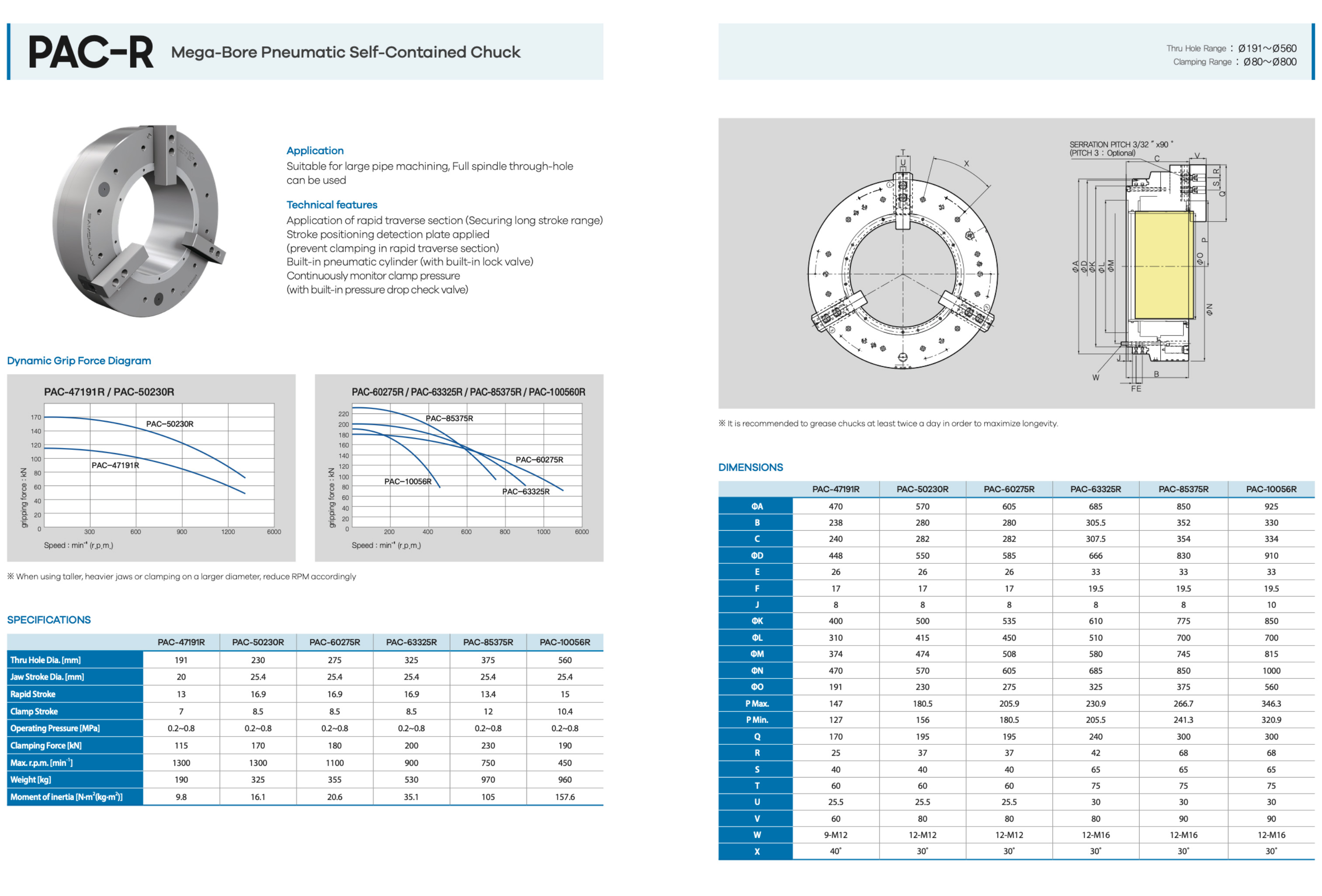

See all specifications: PAC Series Pneumatic Lathe Chucks Specifications
View the Dimensional Drawing
| Model | PAC-100560R |
| Thru Hole Dia. [mm] | 560 |
| Jaw Stroke Dia. [mm] | 25.4 |
| Rapid | 15 |
| Clamp | 10.4 |
| Operating Pressure [MPa] | 0.2~0.8 |
| Clamping Force [kN] | 190 |
| Max R.P.M [min-¹] | 450 |
| Weight [kg] | 960 |
| Moment of Inertia [N·m2(kg·m²)] | 157.6 |
See all Samchully PAC Series Pneumatic Lathe Chucks for Large Pipe Machining
