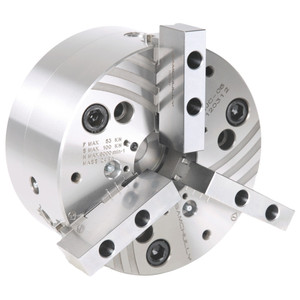

Samchully QJC Series Quick Jaw Change Power Lathe Chuck, 10" Size - QJC-210
Brand: Samchully- SKU:
- QJC-210
- ID:
- 895305
| Size | 10" |
$10,135.00
Samchully QJC Series Quick Jaw Change Power Lathe Chuck, 10" Size - QJC-210
Application:
- Minimal Jaw set-up times (within 1 minute)
- Jaws are reversible (180°)
Technical Features:
- High repeatability when changing jaws (runout < 0.02 mm)
- Minimum loss of gripping force because of wedge bars
- The built-in safety interlock eliminates misoperation

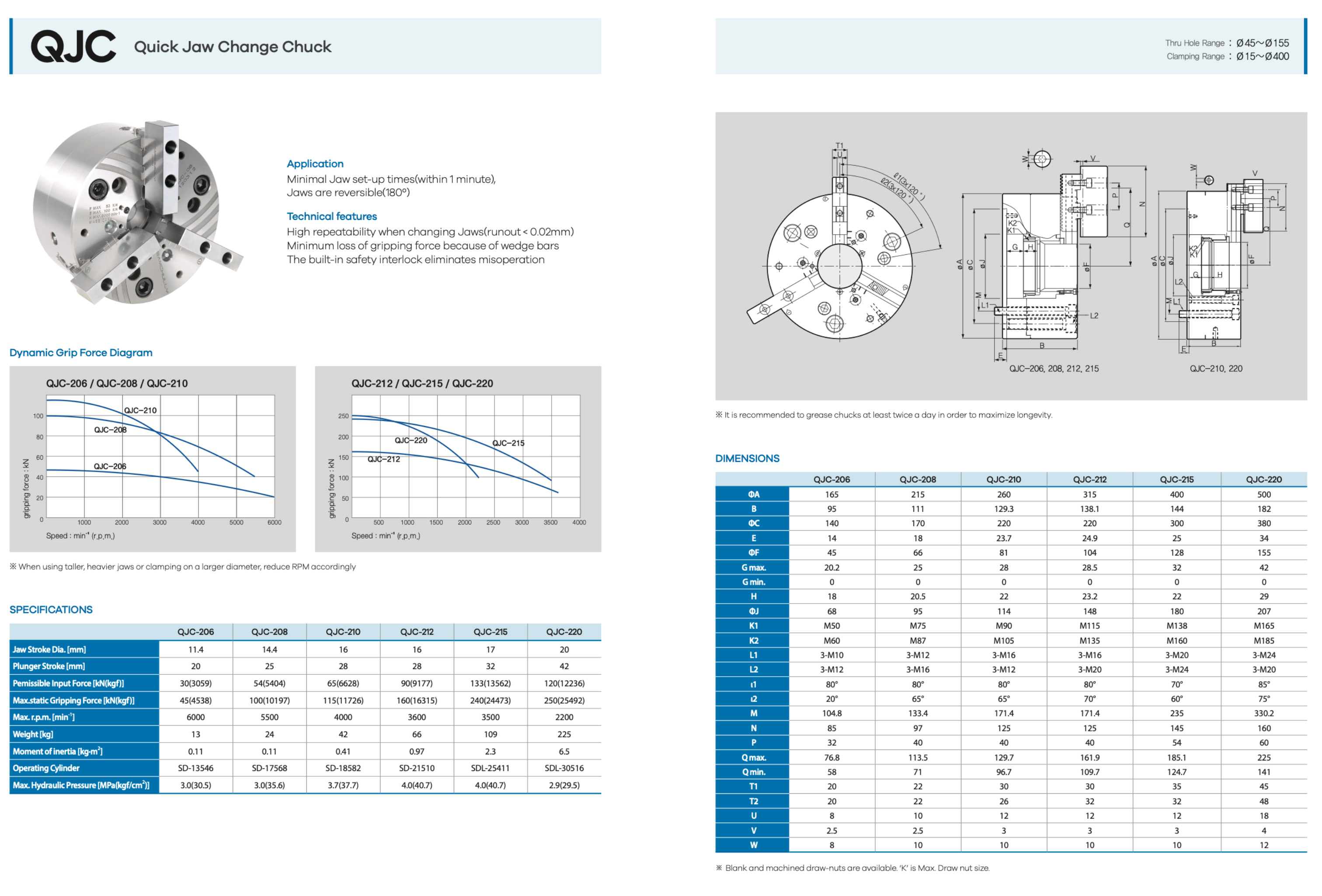

View the full specifications: QJC Series Specifications
| Model | QJC-210 |
| Jaw Stroke Dia. [mm] | 16 |
| Plunger Stroke [mm] | 28 |
| Permissible Input Force [kN(kgf)] | 65(6628) |
| Max. Static Gripping Force [kN(kgf)] | 115(11726) |
| Max R.P.M [min-¹] | 4000 |
| Weight [kg] | 42 |
| Moment of Inertia [N·m2(kg·m²)] | 0.41 |
| Operating Cylinder | SD-18582 |
| Max. Hydraulic Pressure [MPa(kgf/cm²)] | 3.7(37.7) |
See all Samchully QJC Series Quick Jaw Change Power Lathe Chucks
