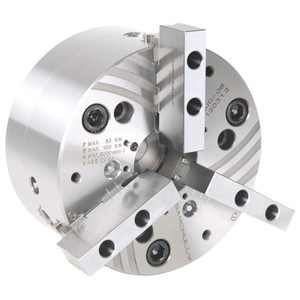

Samchully QJC Series Quick Jaw Change Power Lathe Chuck, 12" Size - QJC-212
Brand: Samchully- SKU:
- QJC-212
- ID:
- 895306
| Size | 12" |
$13,879.00
Samchully QJC Series Quick Jaw Change Power Lathe Chuck, 12" Size - QJC-212
Application:
- Minimal Jaw set-up times (within 1 minute)
- Jaws are reversible (180°)
Technical Features:
- High repeatability when changing jaws (runout < 0.02 mm)
- Minimum loss of gripping force because of wedge bars
- The built-in safety interlock eliminates misoperation
View the full specifications: QJC Series Specifications
| Model | QJC-212 |
| Jaw Stroke Dia. [mm] | 16 |
| Plunger Stroke [mm] | 28 |
| Permissible Input Force [kN(kgf)] | 90(9177) |
| Max. Static Gripping Force [kN(kgf)] | 160(16315) |
| Max R.P.M [min-¹] | 3600 |
| Weight [kg] | 66 |
| Moment of Inertia [N·m2(kg·m²)] | 0.97 |
| Operating Cylinder | SD-21510 |
| Max. Hydraulic Pressure [MPa(kgf/cm²)] | 4.0(40.7) |
See all Samchully QJC Series Quick Jaw Change Power Lathe Chucks
