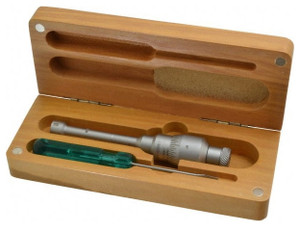

SPI 3-Point Hole-Mike Inside Micrometer, 0.425 - 0.500" - 10-713-6

Brand:   SPI Swiss Precision Instruments
SKU:
10-713-6
ID:
86533
Range 0.425 - 0.500"
Graduation 0.0001"
Measuring Depth 2.00"
Accuracy ±0.0002"
$379.95
Current Stock:
Adding to cart… The item has been added

SPI

SPI 3-Point Hole-Mike Inside Micrometer, 0.425 - 0.500"
10-713-6

0.425 to 0.500", 2" Gage Depth, Mechanical Inside Hole Micrometer

0.0001" Graduation, 0.0002" Accuracy, Ratchet Stop Thimble


Features:

  • Three point internal micrometer for precise direct measurement of bore diameters
  • Self aligning and self centering
  • Carbide measuring anvils
  • Suitable to measure to within .050" of bottom of blind hole, up to 4" capacity
  • Feelers taper toward the back for positive reading of the front edge
  • Ratchet stop provides uniform measuring pressure and assures highest reading accuracy


Specifications:

Item Number 10-713-6
Type Hole
Minimum Measurement (Decimal Inch) 0.4250
Maximum Measurement (Decimal Inch) 0.5000
Graduation (Decimal Inch) 0.0001
Thimble Type Ratchet Stop
Accuracy (Decimal Inch) 0.000200
Gage Depth (Decimal Inch) 2.0000
Number of Contact Points 3
Number of Extension Rods 0
Number of Setting Rings Included 0
Digital Counter No
