SPI 3-Point Hole-Mike Inside Micrometer Set, 12 - 20mm - 14-348-7

Brand:   SPI Swiss Precision Instruments
SKU:
14-348-7
ID:
180225
Range 12 - 20 mm
Graduation 0.005 mm
Measuring Depth 60 mm
Accuracy 0.002 mm
$799.95
Current Stock:
Adding to cart… The item has been added

SPI

SPI 3-Point Hole-Mike Inside Micrometer Set, 12 - 20mm
14-348-7

12 to 20mm, Carbide, Hole Mechanical Inside Micrometer Set

0.005mm Graduation, Ratchet Stop Thimble, (1) Setting Ring Included

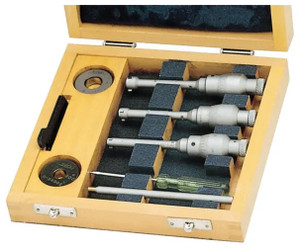

SET 12 - 20 mm including Setting Rings and Spanner wrenches in wooden case


Features:

  • Three point internal micrometer for precise direct measurement of bore diameters
  • Self aligning and self centering
  • Carbide measuring anvils
  • Suitable to measure to within .050" of bottom of blind hole, up to 4" capacity
  • Feelers taper toward the back for positive reading of the front edge
  • Ratchet stop provides uniform measuring pressure and assures highest reading accuracy


Specifications:

Item Number 14-348-7
Minimum Measurement (mm) 12.00
Maximum Measurement (mm) 20.00
Graduation (mm) 0.0050
Accuracy (mm) 0.0020
Number of Extension Rods 0
Thimble Type Ratchet Stop
Gage Depth (mm) 60.00
Measurement Range (mm) 12 to 20
Number of Heads 0
Number of Contact Points 0
Number of Setting Rings Included 1
Setting Ring Diameter (mm) 16.00
Digital Counter No
