SPI 3-Point Hole-Mike Inside Micrometer Set, 20 - 40mm - 14-349-5
Brand: SPI Swiss Precision Instruments- SKU:
- 14-349-5
- ID:
- 180226
| Range | 20 - 40 mm |
| Graduation | 0.005 mm |
| Measuring Depth | 80 mm |
| Accuracy | 0.002 mm |
$1,495.00
SPI 3-Point Hole-Mike Inside Micrometer Set, 20 - 40mm
14-349-5
20 to 40mm, Carbide, Hole Mechanical Inside Micrometer Set
0.005mm Graduation, Ratchet Stop Thimble, (2) Setting Rings Included

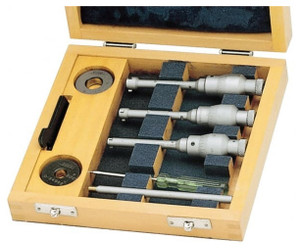

SET 20 - 40 mm including Setting Rings and Spanner wrenches in wooden case
Features:
- Three point internal micrometer for precise direct measurement of bore diameters
- Self aligning and self centering
- Carbide measuring anvils
- Suitable to measure to within .050" of bottom of blind hole, up to 4" capacity
- Feelers taper toward the back for positive reading of the front edge
- Ratchet stop provides uniform measuring pressure and assures highest reading accuracy
Specifications:
| Item Number | 14-349-5 |
| Minimum Measurement (mm) | 20.00 |
| Maximum Measurement (mm) | 40.00 |
| Graduation (mm) | 0.0050 |
| Accuracy (mm) | 0.0020 |
| Number of Extension Rods | 0 |
| Thimble Type | Ratchet Stop |
| Gage Depth (mm) | 80.00 |
| Measurement Range (mm) | 20 to 40 |
| Number of Heads | 0 |
| Number of Contact Points | 0 |
| Number of Setting Rings Included | 2 |
| Setting Ring Diameter (mm) | 25.00; 35.00 |
| Digital Counter | No |
