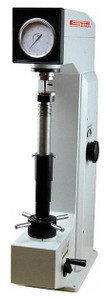

SPI Dial Rockwell Scale Hardness Tester, Tall Frame - 21-313-2
Brand: SPI Swiss Precision Instruments- SKU:
- 21-313-2
- ID:
- 355279
$10,395.00
SPI Dial Rockwell Scale Hardness Tester, Tall Frame
21-313-2
Rockwell Bench Top Hardness Tester
Easy to operate, yet engineered to obtain highly sensitive and accurate readings. A rugged performer suited for almost any environment, including heat treat facilities, tool rooms, workshops, laboratories and inspection labs.
- Certificate of Calibration traceable to NIST included
- 5 Year warranty
Specifications:
| Item Number | 21-313-2 |
| Scale Type | Rockwell (Tall Frame) |
| Minimum Hardness | 20 HRC |
| Maximum Hardness | 70 HRC |
| Display Type | Analog |
| Resolution (HRC) | 1.00 |
| Preset Load | 10 kgF |
| Full Load | 60 kgF, 100 kgF, 150 kgF |
| Test Force Control | Hydraulic Dash Pot |
| Vertical Capacity | 15.75" |
| Throat Depth | 5.50" |
| Dimensions | 33" H x 18" W x 70" D |
| Weight | 200 lbs. |
| Diamond Indentor | C-Scale |
| Ball Indentor | 1/16" Carbide |
| Test Blocks | (3) HRC, (1) HRB, (1) HRA |
| Test Table | 5.87" |
| Anvils | 2.5" Flat, Std. Vee |
