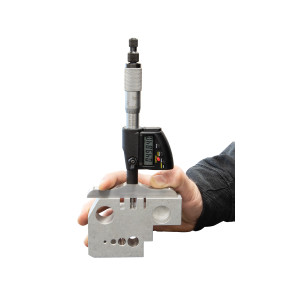

Starrett Electronic Micrometer Depth Gage, 0-6", EDP 72780 - 749.1BZ-6RL

Starrett Electronic Micrometer Depth Gage, 0-6", EDP 72780 - 749.1BZ-6RL

Electronic Digital Micrometer Depth Gage, Ratchet Thimble, 0-6" Range, .001"

The Starrett 749.1 Electronic Depth Micrometer has a wide 0-6" (0-150mm) range for measuring the depth of most holes, slots, shoulders and projections. 0-6" (0-150mm) Range with Case projections.

Features

• Starrett no-glare satin chrome finish on thimble and sleeve

• Large, easy-to-read .275 (7mm) high contrast LCD digital readout

• Extremely hard and stable one-piece spindle

• Auto Off after 20 minutes of nonuse

• Inch/millimeter conversion on English versions

• Measurement HOLD button

• Zero at any position

• Retain and return to true zero reading

• Spindle lock

• Data Output

• Resolution: .00005" (0.001mm)

• Accuracy +/-.0001 (+/-.002mm)

• PRESET button to install any reading at any position

• Ability to install minimum and maximum limits

• Base Length 4"/rod diameter 5/32"
• Download 2-Dimensional drawing here

Specifications

• Micrometer Type: Electronic

• Range (in): 0-6"

• Range (mm): 0-150mm

• Graduations (in): .0001"

• Graduations (mm): 0.001mm

• Resolution (in): .0001"

• Resolution (mm): 0.001mm

• Base Length (in): 4"

• Base Length (mm): 100mm

• Type: Depth

• Lock Nut Type: Lever

• Measuring Rods (qty): 6

• Rod Diameter (in): 5/32"

• Rod Diameter (mm): 4mm

• Thimble Graduations: English

• Thimble Type: Ratchet

• Case Type: Padded Case

• Accuracy (in): Mic head +/-.0001"; Rods +/-.0002"

• Accuracy (mm): Mic head +/-.003mm; Rods +/-.005mm


See all Starrett 749 Digital Micrometer Depth Gages
