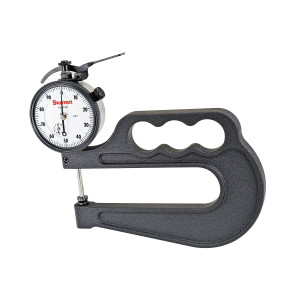

Starrett Portable Dial Thickness Gage, EDP 67649 - 1015B-4

Starrett Portable Dial Thickness Gage, EDP 67649 - 1015B-4

Portable Dial Thickness Gage, 0-1", .001", 0-100, 4"

After inserting work between the measuring contacts, releasing the lever will cause the spindle to contact the work, giving an accurate size reading because measuring pressure is independent of the user. 1" Range, 0-100 Dial, .001" Grad, 4" Throat Depth, without Case.

Features

• The contact edges are radiused to prevent the work from being marred or deflected.

• The flat contact area measures 1/4" (6.3mm) in diameter and is 1/8" (0.125mm) thick.

• Indicators have jewel bearings and continuous dials.

• Special contact sizes and shapes are available by request.
• Download 2-Dimensional drawing here

Specifications

• Made in America: Yes

• Type: Portable Dial Thickness Gage

• Range (in): 1"

• Graduations (in): .001"

• Dial Reading: 0 - 100

• Throat Depth (in): 4"

See all Starrett 1015 Portable Dial Thickness Gages
