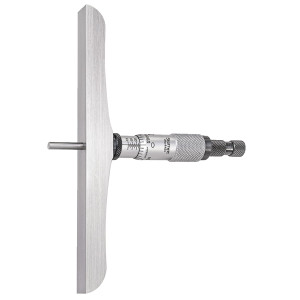

Starrett Ratchet Thimble Micrometer Depth Gage, EDP# 52252 - 445DZ-9RL
Brand: Starrett- SKU:
- 445DZ-9RL
- ID:
- 190089
| Base | 6" |
| # Rods | 9 |
| Rod Dia. | 5/32" |
| Includes | Ratchet Stop, Lock Nut, Case |
$649.95
Starrett Ratchet Thimble Micrometer Depth Gage, EDP# 52252 - 445DZ-9RL
Micrometer Depth Gage, Ratchet Thimble, 0-9" Range, .001"
The Starrett 440, 440M, 445, 445M Series Depth Micrometer features a combination ratchet and speeder, ring-type locknut, ratchet stop and locknut. 0-9" Range, 6" Base, 9 Rods, Ratchet Stop, Lock Nut, Case.
Features:
- The depths of holes, slots, shoulders and projections can be measured with these fine tools
- 6" (150mm) base and 5/32" (4mm) diameter measuring rods
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Ring-type knurled lock nut for quick and sure locking
- Satin chrome reading surface is glare free and resists rust
- Download 2-Dimensional Drawing here
- Made in America
- Replacement Rods available, call for assistance: 800-526-4956
Specifications:
| Micrometer Type | Mechanical |
| Range (in) | 0 - 9" |
| Graduations (in) | .001" |
| Base Length (in) | 6" |
| Lock Nut Type | Ring Type Knurled |
| Measuring Rods (qty) | 9 |
| Rod Diameter (in) | 5/32" |
| Thimble Type | Ratchet |
| Case Type | Padded Case |
| Accuracy (in) | Mic head +/-.0001"; Rods +/-.0002" |
