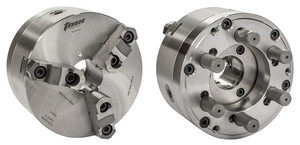

TMX 3-Jaw Type D Direct Mount Scroll Chuck, 12in D1-11 - 3-823-1239P
Brand: TMX- SKU:
- 3-823-1239P
- ID:
- 357038
| Chuck Size | 12" |
| Taper Size | D1-11 |
| Gripping Force | 5500 daN |
| Max RPM | 2800 RPM |
| Weight | 151 lbs. |
$2,995.00
TMX 3-Jaw Type D Direct Mount Scroll Chuck, 12in D1-11
3-823-1239P
3-Jaw (2Pc) Scroll Forged Steel 12in D1-11
3-Jaw Precision Forged Steel Body Scroll Chuck with Two-Piece Hard Reversible Jaws, Camlock D, 12in D1-11
TMX by Toolmex MADE IN EUROPE
(Compare to Bison® Models 3245 & 3545 - Series 7-803 & 7-823)
Features:
- Type D Direct Mount – No need for machining, no backplate required
- All forged steel bodies are hardened to 28 HRC providing improved durability and rigidity
- All bearing surfaces are carefully hardened and machined at high tolerances. Each scroll is balanced.
- 2 piece Hard Reversible American Standard Tongue and Groove jaws are made of high quality alloy steel then hardened
- Made in Europe
Standard Accessories:
- 1 Set of hard master jaws
- 1 Set of hard top reversible jaws
- 1 Chuck wrench
- 1 Set of mounting bolts
- Eye bolts for chuck sizes 16" and larger
Optional Accessories:
- Soft Top Jaws
- Camlock Studs for D Mount
Technical Data:
| Selling Unit | EA | |
| Chuck Type | Scroll | |
| Chuck Size | in | 12 |
| Body Material | Forged Steel | |
| Number of Jaws | 3 | |
| Jaw Type | 2pc | |
| Weight | lb | 151 |
| Taper Size | D1-11 | |
| Gripping Force | daN | 5500 |
| Max RPM | RPM | 2800 |
| Diameter D | in | 12.402 |
| Recess Diameter B | in | 7.7507 |
| Hole Diameter E | in | 4.0551 |
| Stud Circle Diameter F | in | 9.252 |
| Body Height H | in | 5.374 |
| Jaw Height H1 (Two-piece Jaws) |
in | 2.244 |
| d1 Two-Piece Jaws | in | 0.394 - 5.16 |
| d2 Two-Piece Jaws | in | 4.06 - 8.90 |
| d3 Two-Piece Jaws | in | 7.48 - 12.40 |
| d4 Two-Piece Jaws | in | 2.56 - 7.17 |
| d5 Two-Piece Jaws | in | 5.71 - 10.43 |
