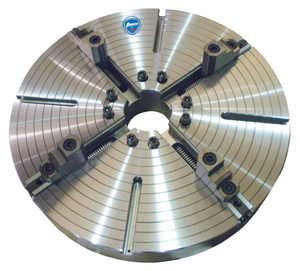

TMX 4-Jaw Type A Direct Mount Independent Chuck, 32in A2-15, 5.32" Hole - 3-856-3215P
Brand: TMX- SKU:
- 3-856-3215P
- ID:
- 359918
| Chuck Size | 32" |
| Mount Type | A2-15 |
| Hole Size | 5.32" |
| Max RPM | 764 RPM |
| Weight | 990 lbs. |
$19,995.00
TMX 4-Jaw Type A Direct Mount Independent Chuck
32in A2-15, 5.32" Hole - 3-856-3215P
4-Jaw(2Pc) Independent Forged Steel Body Chuck 32" A2-15, 5.32" Hole
TMX by Toolmex MADE IN EUROPE
Compare to Bison® Models 4313 & 4314 – Series 7-856 & 7-851
Features:
- A Type Direct Mount – No need for machining and no backplate required
- All forged steel bodies at 28HRC for durability and rigidity
- 2pc Hard Reversible American Standard Tongue and Groove jaws are made of high quality alloy then hardened and ground
- Operating screws are hardened and ground
- Chucks 10" and larger have T-Slots
- Made in Europe
Standard Accessories:
- Two Piece Reversible Jaws (Hard Top Jaws and Hard Master Jaws)
- 1 Chuck Wrench
- 1 Set of Chuck Mounting Bolts
  |
Optional Accessories:
- Soft Top Jaws
- Hard Solid Reversible Jaws
Technical Data:
| Selling Unit | EA | |
| Chuck Type | Independent | |
| Chuck Size | in | 32 |
| Body Material | Forged Steel | |
| Number of Jaws | 4 | |
| Jaw Type | 2pc | |
| Weight | lb | 990 |
| Mount Type | A2-15 | |
| Maximum Rotation Speed | RPM | 764 |
| d1 Two-Piece Jaws | in | 1.969 |
| d2 Two-Piece Jaws | in | 31.496 |
| Diameter D | in | 31.496 |
| Recess Diameter B | in | 11.2520 |
| Hole Diameter E | in | 5.3150 |
| Bolt Circle Diameter F | in | 13.0000 |
| Body Height H | in | 4.9213 |
| Jaw Height H1 | in | 2.8346 |
| Bolt Thread Size S | 12xM24 |
