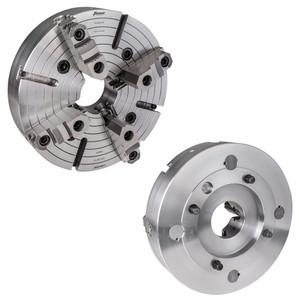

TMX 4-Jaw Type A Direct Mount Independent Chuck, 8in A2-6, 1.97" Hole - 3-856-0816P
Brand: TMX- SKU:
- 3-856-0816P
- ID:
- 359895
| Chuck Size | 8" |
| Mount Type | A2-6 |
| Hole Size | 1.97" |
| Max RPM | 2500 RPM |
| Weight | 38 lbs. |
$1,795.00
TMX 4-Jaw Type A Direct Mount Independent Chuck
8in A2-6, 1.97" Hole - 3-856-0816P
4-Jaw(2Pc) Independent Forged Steel Body Chuck 8" A2-6, 1.97" Hole
TMX by Toolmex MADE IN EUROPE
Compare to Bison® Models 4313 & 4314 – Series 7-856 & 7-851
Features:
- A Type Direct Mount – No need for machining and no backplate required
- All forged steel bodies at 28HRC for durability and rigidity
- 2pc Hard Reversible American Standard Tongue and Groove jaws are made of high quality alloy then hardened and ground
- Operating screws are hardened and ground
- Chucks 10" and larger have T-Slots
- Made in Europe
Standard Accessories:
- Two Piece Reversible Jaws (Hard Top Jaws and Hard Master Jaws)
- 1 Chuck Wrench
- 1 Set of Chuck Mounting Bolts
  |
Optional Accessories:
- Soft Top Jaws
- Hard Solid Reversible Jaws
Technical Data:
| Selling Unit | EA | |
| Chuck Type | Independent | |
| Chuck Size | in | 8 |
| Body Material | Forged Steel | |
| Number of Jaws | 4 | |
| Jaw Type | 2pc | |
| Weight | lb | 38 |
| Mount Type | A2-6 | |
| Maximum Rotation Speed | RPM | 2500 |
| d1 Two-Piece Jaws | in | 0.394 |
| d2 Two-Piece Jaws | in | 7.874 |
| Diameter D | in | 7.874 |
| Recess Diameter B | in | 4.188 |
| Hole Diameter E | in | 1.9685 |
| Bolt Circle Diameter F | in | 5.252 |
| Body Height H | in | 2.8543 |
| Jaw Height H1 | in | 1.7717 |
| Bolt Thread Size S | 4xM12 |
