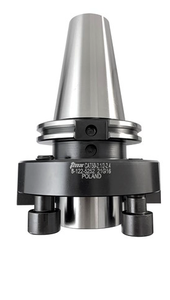

TMX CAT50 Face Mill Holder, 2-1/2" x 2.4" - 8-122-5252
Brand: TMX- SKU:
- 8-122-5252
- ID:
- 348113
| Taper | CAT50 |
| Arbor/Pilot Dia (D2) | 2-1/2" |
| Overall Length (L) | 7.5" |
| Gage Length (L1) | 2.4" |
| Arbor/Pilot Length (L2) | 1-1/8" |
| Drive Key (L4) | 1" |
| Major Dia (D1) | 5.06" |
$345.95
TMX CAT50 Face Mill Holder, 2-1/2" x 2.4"
8-122-5252
- Pilot T.I.R. <0.0002"
- Four holes with 5/8”-11 thread on a 4” bolt circle diameter
- Designed to hold cutters 8” or larger
- Vibration reduction for extended spindle and tool life
- Certified balanced to 25,000 RPM at G2.5
- Taper ground to AT3 specification for maximum spindle contact
- H6 arbor tolerance for less chatter
- Pull stud thread is 1"-8
| Item Type | CAT50 Face Mill Holder |
| Taper | CAT50 |
| Arbor/Pilot Diameter (D2) | 2-1/2" |
| Overall Length (L) | 7.5" |
| Gage Length (L1) | 2.4" |
| Arbor/Pilot Length (L2) | 1-1/8" |
| Drive Key (L4) | 1" |
| Major Diameter (D1) | 5.06" |
| Weight | 14.0 lbs. |
See all TMX CAT50 Face Mill Holders
