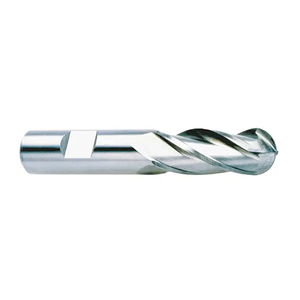

Weldon Tool 4 Flute H.S.S. or M42 8% Cobalt Ball End Single End Mills

Brand: Weldon Tool

SKU:

ID:: 795670

Current Stock:

Weldon Tool 4 Flute H.S.S. or M42 8% Cobalt Ball End Single End Mills

H.S.S. - High Speed Steel
Hardness: 58 to 60 RC
4 flutes allow for faster speeds at the expense of chip removal due to the reduced area of flute & thus produces a finer finish vs 2 or 3 flutes.
Recommended For Milling Radius Bottom Slots, Fillets And Special Contours
The spiral flute design permits a faster and smoother cutting action and the end mills are sized to provide a good cutting range while affording adequate rigidity.
Finish Coating: Bright
Helix Angle: 30°
Cutting Direction: Right Hand
Center Cutting: Yes
Flute Shape: Spiral
Workpiece Material Range: Steel, Non-Ferrous, Cast Iron, Plastics
Country of Origin: U.S.A.

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.

Item Number	Description	Price	Quantity
08-447-160	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 7/8" Size, 7/8" Shank Diameter, 1-7/8" Length of Cut, 4-1/8" Overall Length	yes	$ 220.95
08-447-130	Weldon Tool 4 Flute M42 8% Cobalt Ball End Single End Mill, 1/2" Size, 1/2" Shank Diameter, 1" Length of Cut, 3" Overall Length	yes	$ 85.95
08-447-140	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 5/8" Size, 5/8" Shank Diameter, 1-1/4" Length of Cut, 3-3/8" Overall Length	yes	$ 114.95
08-447-150	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 3/4" Size, 3/4" Shank Diameter, 1-1/2" Length of Cut, 3-3/4" Overall Length	yes	$ 147.95
08-447-162	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 1" Size, 1" Shank Diameter, 2" Length of Cut, 4-1/2" Overall Length	yes	$ 240.95
08-447-172	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 1-1/4" Size, 1-1/4" Shank Diameter, 2" Length of Cut, 4-1/2" Overall Length	yes	$ 278.95
08-447-182	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 1-1/2" Size, 1-1/4" Shank Diameter, 2" Length of Cut, 4-1/2" Overall Length	yes	$ 378.95
08-447-132	Weldon Tool 4 Flute M42 8% Cobalt Ball End Single End Mill, 1/2" Size, 1/2" Shank Diameter, 1-1/2" Length of Cut, 3-1/2" Overall Length	yes	$ 94.95
08-447-134	Weldon Tool 4 Flute M42 8% Cobalt Ball End Single End Mill, 1/2" Size, 1/2" Shank Diameter, 2" Length of Cut, 4" Overall Length	yes	$ 100.95
08-447-136	Weldon Tool 4 Flute M42 8% Cobalt Ball End Single End Mill, 1/2" Size, 1/2" Shank Diameter, 2-1/2" Length of Cut, 4-1/2" Overall Length	yes	$ 117.95
08-447-138	Weldon Tool 4 Flute M42 8% Cobalt Ball End Single End Mill, 1/2" Size, 1/2" Shank Diameter, 3" Length of Cut, 5" Overall Length	yes	$ 126.95
08-447-142	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 5/8" Size, 5/8" Shank Diameter, 1-3/4" Length of Cut, 3-7/8" Overall Length	yes	$ 136.95
08-447-144	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 5/8" Size, 5/8" Shank Diameter, 2-1/2" Length of Cut, 4-5/8" Overall Length	yes	$ 149.95
08-447-146	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 5/8" Size, 5/8" Shank Diameter, 3" Length of Cut, 5-1/8" Overall Length	yes	$ 164.95
08-447-152	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 3/4" Size, 3/4" Shank Diameter, 2-1/4" Length of Cut, 4-1/2" Overall Length	yes	$ 157.95
08-447-154	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 3/4" Size, 3/4" Shank Diameter, 3" Length of Cut, 5-1/4" Overall Length	yes	$ 187.95
08-447-156	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 3/4" Size, 3/4" Shank Diameter, 3-3/4" Length of Cut, 6" Overall Length	yes	$ 206.95
08-447-158	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 3/4" Size, 3/4" Shank Diameter, 4-1/2" Length of Cut, 6-3/4" Overall Length	yes	$ 223.95
08-447-164	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 1" Size, 1" Shank Diameter, 3" Length of Cut, 5-1/2" Overall Length	yes	$ 275.95
08-447-166	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 1" Size, 1" Shank Diameter, 4" Length of Cut, 6-1/2" Overall Length	yes	$ 294.95
08-447-168	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 1" Size, 1" Shank Diameter, 5" Length of Cut, 7-1/2" Overall Length	yes	$ 325.95
08-447-170	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 1" Size, 1" Shank Diameter, 6" Length of Cut, 8-1/2" Overall Length	yes	$ 254.01
08-447-174	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 1-1/4" Size, 1-1/4" Shank Diameter, 3" Length of Cut, 5-1/2" Overall Length	yes	$ 326.95
08-447-176	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 1-1/4" Size, 1-1/4" Shank Diameter, 4" Length of Cut, 6-1/2" Overall Length	yes	$ 467.95
08-447-178	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 1-1/4" Size, 1-1/4" Shank Diameter, 4-1/2" Length of Cut, 7" Overall Length	yes	$ 396.95
08-447-180	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 1-1/4" Size, 1-1/4" Shank Diameter, 6" Length of Cut, 8-1/2" Overall Length	yes	$ 468.95
08-447-184	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 1-1/2" Size, 1-1/4" Shank Diameter, 4" Length of Cut, 6-1/2" Overall Length	yes	$ 405.95
08-447-186	Weldon Tool 4 Flute H.S.S. Ball End Single End Mill, 1-1/2" Size, 1-1/4" Shank Diameter, 6" Length of Cut, 8-1/2" Overall Length	yes	$ 605.95
