Bison 3 Jaws, 10" Diam, Self Centering Manual Lathe Chuck L-2 Mount Spindle, Reversible, 2,000 Max RPM, 2.9921" Through Hole Diam, 0.001" Axial Runout, 0.0016" Radial Runout, Cast Iron 7-804-1044 - 08602203

Bison 3 Jaws, 10" Diam, Self Centering Manual Lathe Chuck L-2 Mount Spindle, Reversible, 2,000 Max RPM, 2.9921" Through Hole Diam, 0.001" Axial Runout, 0.0016" Radial Runout, Cast Iron 7-804-1044 - 08602203

Brand:   Bison
SKU:
08602203
ID:
450878
callling
$3,004.67
Current Stock:
Adding to cart… The item has been added

Bison-BialBison-Bial

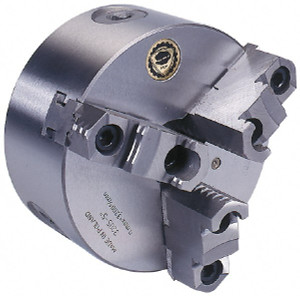

Bison 3 Jaws, 10" Diam, Self Centering Manual Lathe Chuck L-2 Mount Spindle, Reversible, 2,000 Max RPM, 2.9921" Through Hole Diam, 0.001" Axial Runout, 0.0016" Radial Runout, Cast Iron

Manufacturer Part #: 7-804-1044

S/N: 08602203

UNSPSC: 31380000

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Chuck TypeSelf-Centering
Chuck Diameter (Inch)10
Chuck Diameter (mm)254.00
Number Of Jaws3
Body MaterialCast Iron
AdjustableNo
Reversible JawsReversible
Maximum Jaw Capacity (Inch)9.2500
Maximum Rpm2000
Jaw TypeTwo-Piece
Axial Runout (Decimal Inch)0.0010
Radial Runout (Decimal Inch)0.0016
Body Length (Decimal Inch)6.0236
MaterialCast Iron
ContentsTwo-Piece Jaws
Minimum Jaw Capacity (Inch)0.1970
Through-Hole Diameter (Decimal Inch)2.9921
