Mitutoyo Disk Micrometer, Non-Rotating Spindle Type, Digital, 0-1"/0-25.4mm - 369-350-30

Brand:   Mitutoyo
SKU:
369-350-30
ID:
115351
Range 0 - 1" / 0 - 25 mm
Accuracy ± 0.0002"
callling
$825.00
Current Stock:
Adding to cart… The item has been added

Mitutoyo

Mitutoyo Disk Micrometer, Non-Rotating Spindle Type, Digital, 0-1"/0-25.4mm - 369-350-30

  • The Disk Micrometer is designed to easily measure root tangent length of spur gears and herical gears.
  • Non-rotating spindle eliminates torque on workpiece.
  • With standard bar except 0 - 15mm, 0 - .6” 0 - 25mm, 0 - 1”, 0 - 300mm & 0 - 1.2” model
  • Speedy spindle feed of 10mm/rev. (Quickmike type).
  • Diameter of measuring disk: 20mm / .787”
  • With Ratchet Stop for constant force.
  • With SPC output (Series 369).

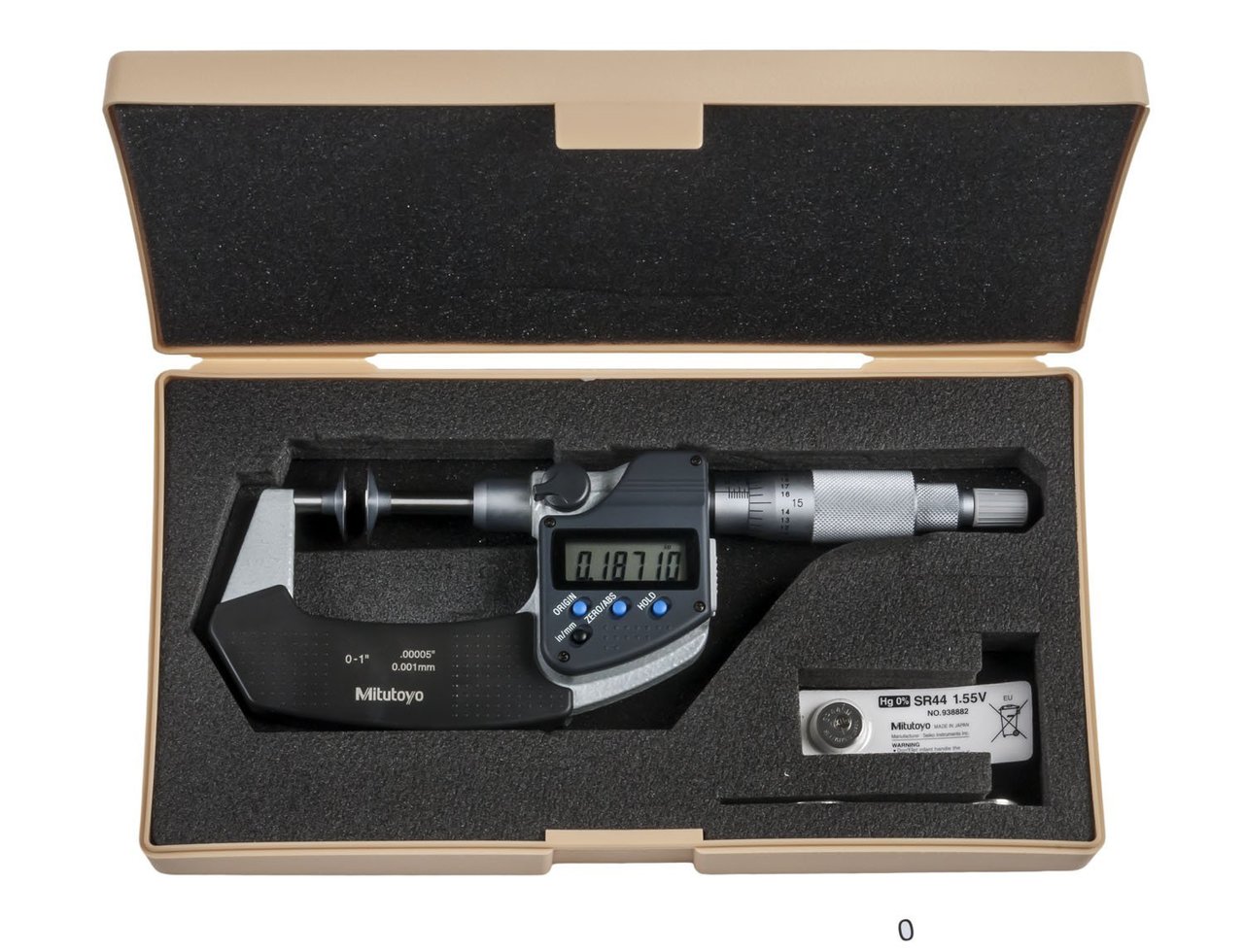

  • Supplied in fitted plastic case
Range 0-1" / 0-25.4mm
Accuracy ± 0.0002"
Resolution* 0.001mm or .00005"/0.001mm
Graduation** 0.01mm or .001"
Flatness 1ìm / .00004”
Parallelism 4µm / .00016" for models up to 50mm / 2"
6µm / .00024" for models over 50mm / 2"
Measurable module 0.5-6
Display* LCD
Battery* SR44 (1 pc.), 938882
Battery life* Approx. 1.2 years under normal use
(1 year: Quickmike type,
3 years: Quickmike type with fine-loading)


* Digital models
** Analog models
