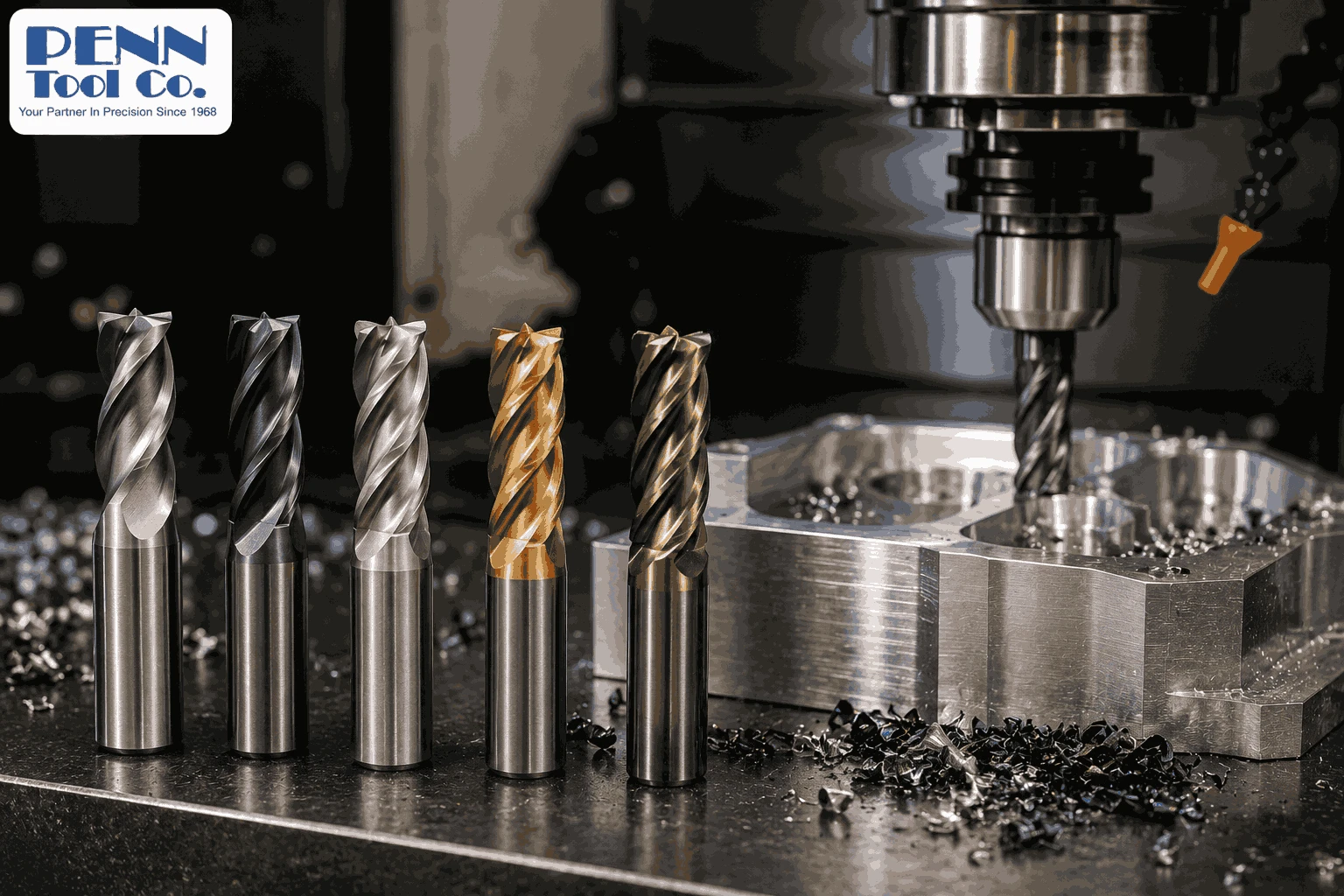

How to Choose the Right End Mill: Flutes, Materials & Coatings

Choosing an end mill involves more than selecting the right diameter. Flute count, material, coating, geometry, and application all affect material removal, tool life, and surface finish. A tool suited for aluminum may not perform well in hardened steel, while a finishing cutter may not handle aggressive roughing.

A good end mill buying guide starts with the workpiece and machining operation. Understanding end mill flute count, tool material, coatings, diameter, helix, and cutting geometry helps machinists select the right tool for the job.

At PennTool Co., we provide a broad selection of industrial cutting tools for machine shops, CNC operations, maintenance departments, and manufacturing environments. Whether you need a general-purpose carbide end mill, an HSS end mill, or a specialized coated cutter, matching the tool to the application is the first step toward better tool life and predictable machining results.

Start With the Workpiece, Find the Right Mill

The workpiece should guide your end mill selection. Aluminum benefits from sharp edges, fewer flutes, and efficient chip evacuation, while steel often requires stronger edges and greater thermal resistance. For demanding alloys, specialized carbide grades, coatings, and geometries may be needed to handle the cutting conditions effectively.

Tool material also matters. An HSS end mill offers toughness and versatility for general-purpose operations, while a carbide end mill provides greater hardness, wear resistance, and higher-speed capability when the machine and setup can support it.

For general-purpose operations, Penn Tool Co.'s Precise 2-Flute H.S.S. Single End Mills are designed for slots, grooves, and similar features across ferrous and non-ferrous materials.

Flute Count Matters: Choosing the Right Cutting Edge

The most common configurations are 2-flute and 4-flute designs, although specialized tools can have additional flutes.

End Mill Flute Count	Advantage	Common Applications
2-Flute	Better chip evacuation	Aluminum, plastics, slotting, roughing
3-Flute	Balance of chip space and strength	Aluminum and general machining
4-Flute	More cutting edges and rigidity	Steel, finishing, production work
5-Flute +	Higher feed potential in suitable conditions	High-efficiency finishing and production

The right end mill flute count therefore depends on the material, operation, feed rate, spindle capability, and chip evacuation requirements.

Carbide vs. HSS End Mills: Which Material Should You Choose?

The choice between carbide and HSS depends on machining conditions, machine capability, production requirements, and budget.

Feature	Carbide End Mills	HSS End Mills
Hardness	Higher hardness and wear resistance	Tougher and more forgiving
Cutting Speed	Ideal for higher-speed machining	Better suited to lower-speed machining
Tool Life	Longer tool life in demanding applications	Reliable for general-purpose work
Heat Resistance	Maintains hardness at elevated temperatures	Lower heat resistance than carbide
Rigidity	Requires a rigid setup to prevent damage	More tolerant of vibration and deflection
Cost	Higher initial cost	More economical for many applications
Best For	Production machining, tougher metals, high-speed operations	Toolrooms, maintenance, general-purpose milling
Versatility	Best when performance and speed are priorities	Excellent across varied ferrous and non-ferrous materials

Add a Protective Edge: Understanding End Mill Coatings

End mill coatings are engineered surface layers that improve wear resistance, reduce friction, manage heat, and extend tool life under suitable machining conditions.

Common coatings include TiN, TiCN, TiAlN, and AlTiN. The right choice depends on the workpiece, cutting conditions, and coolant strategy. Penn Tool Co.'s Precise carbide end mills include AlTiN-coated options, which provide thermal stability, heat resistance, and lubricity for many steels and abrasive materials.

When selecting a coating, consider:

• Workpiece material
• Cutting speed and feed
• Dry or wet machining
• Heat and abrasiveness
• Desired tool life
• Roughing or finishing

The goal isn't simply to choose the most heavily coated tool, but to match the coating to the machining environment. For some applications, an uncoated HSS tool is sufficient, while demanding CNC work may benefit from coated carbide.

Match the End Mill to the Application

The next step in this end mill buying guide is identifying exactly what the cutter needs to accomplish.

• Slotting: Slotting requires effective chip evacuation because the cutter can become heavily engaged with the workpiece. Two-flute designs are often useful where chip clearance is a priority, particularly in aluminum and other materials that generate substantial chips.
• Pocketing: Pocketing introduces repeated engagement and disengagement, making tool rigidity and chip evacuation important. The best choice depends on the material, pocket depth, machine rigidity, and whether the operation is primarily roughing or finishing.
• Contouring: Contour milling places greater emphasis on tool geometry, surface finish, and rigidity. Four-flute cutters can be advantageous for finishing harder materials when the machining setup is sufficiently rigid.
• Roughing: Roughing prioritizes material removal. The cutter must withstand substantial cutting forces while maintaining acceptable chip evacuation. Carbide tools with appropriate geometry are commonly selected for demanding CNC roughing operations.
• Finishing: Finishing focuses on dimensional accuracy and surface quality. Higher flute counts can provide more cutting edges, while specialized finishing geometries can help produce smoother surfaces.

Beyond Flute Count: Key Geometry and Structural Factors for End Mills

An end mill's performance isn't defined by its flute count and material alone; its physical dimensions and overall cutting geometry directly dictate tool rigidity, surface finish, and tool life.

• Diameter and Material Removal: Larger-diameter cutters provide greater structural rigidity for high-volume material removal. Conversely, smaller-diameter cutters allow access to tight pockets and narrow features, though they are significantly more susceptible to tool deflection.
• Tool Length and Setup: Always select the shortest possible tool that can safely reach the required feature depth. Minimizing overhang reduces chatter, eliminates flex, and delivers a superior surface finish.
• Shank Size and Rigidity: The shank diameter must match your toolholder or collet system precisely, providing a secure, high-rigidity grip that prevents slippage under heavy cutting loads.
• Helix and Rake Angles: Higher helix angles deliver a smoother shearing action and better surface finishes, whereas standard or lower helix angles provide the cutting-edge strength needed for tough, abrasive materials.
• Material-Specific Geometry: Geometry must align with the workpiece material. Aluminum demands high-clearance geometries for fast chip evacuation, while steels require thicker cores and reinforced edges to withstand intense cutting forces.

Your Quick Guide to Choosing the Right End Mill

Before ordering a cutter, consider these key factors:

1. Material: Match the tool to aluminum, steel, stainless steel, cast iron, plastics, or hardened alloys
2. Operation: Consider whether you're slotting, pocketing, roughing, contouring, or finishing
3. Flute Count: Choose the right end mill flute count based on material and chip evacuation needs
4. Tool Material: Select a carbide end mill for speed and wear resistance or an HSS end mill for toughness and versatility
5. Coating: Match end mill coatings to the workpiece and machining conditions
6. Size and Reach: Choose the smallest diameter and shortest reach that can safely complete the job
7. Finish: Match the flute count, geometry, and tool type to the required surface finish

Pro Buyer Tips for Choosing End Mills

• Buy for the application, not just the price: Consider tool life, downtime, and replacement costs, not just the initial price
• Keep multiple flute configurations available: Different materials and operations may require different flute counts
• Minimize tool stick-out: Use only the reach you need to reduce deflection and chatter
• Match coating to material: Choose end mill coatings based on the workpiece and cutting conditions
• Follow manufacturer cutting data: Adjust speeds and feeds for tool size, material, machine rigidity, and coolant
• Keep backup tools available: Avoid production delays when a cutter reaches the end of its useful life
• Inspect worn tools: Chipped edges, excessive wear, discoloration, or poor finishes can signal that the tool or cutting parameters need adjustment

The Right End Mill Starts With the Job

There is no single end mill for every machining operation. The right choice depends on the material, flute count, tool construction, coating, geometry, diameter, reach, and machine capability.

A 2-flute carbide end mill can be effective for high-volume aluminum work, while a 4-flute carbide cutter may be better suited to tougher materials and finishing. An HSS end mill remains a practical choice for general-purpose milling, maintenance work, and moderate cutting speeds.

When the cutter matches the workpiece and operation, shops can improve chip control, surface finish, tool life, and overall productivity.

At Penn Tool Co., we offer a wide selection of end mills, including carbide, HSS, coated, multi-flute, finishing, and specialty options. With decades of experience serving machinists and manufacturing professionals, we help you find cutting tools suited to your specific application.

Frequently Asked Questions

What is the most common end mill flute count?

2- and 4-flute end mills are the most common. 2-flute tools offer better chip evacuation and work well for aluminum and slotting, while 4-flute cutters provide more cutting edges and greater strength for steel and finishing.

Is carbide better than HSS for end mills?

Neither is always better. A carbide end mill offers greater hardness, wear resistance, and high-speed capability, while an HSS end mill provides toughness, versatility, and cost-effective performance for general-purpose or lower-speed machining.

What are end mill coatings used for?

End mill coatings can improve wear resistance, reduce friction, manage heat, and extend tool life under suitable machining conditions. The appropriate coating depends on the workpiece, cutting conditions, coolant strategy, and tool material.

How many flutes should an end mill have for aluminum?

Two-flute end mills are a common choice for aluminum because their larger flute valleys provide more room for chip evacuation. However, the best end mill flute count also depends on the tool geometry, machine, cutting parameters, and specific aluminum alloy.
