How to Read a Micrometer: A Simple Step-by-Step Guide

A micrometer is a precision measuring instrument used to measure small dimensions with a high degree of precision. It is commonly used in machining, manufacturing, quality control, automotive work, engineering, and metalworking.

Learning how to read a micrometer may seem complicated at first, but the process becomes straightforward once you understand the parts, the scale, and how the measurements are added together.

This guide explains how to use and read a micrometer step by step, including metric, imperial, and vernier micrometers.

What Is a Micrometer?

A micrometer is a precision measuring tool that uses a finely threaded screw mechanism to measure the size or thickness of a workpiece. The spindle moves toward or away from the anvil as the thimble is rotated.

Compared with a standard ruler or tape measure, a micrometer allows you to make much finer measurements. Depending on the model, a micrometer may measure in millimeters, inches, or smaller increments.

Common Types of Micrometers

• Outside Micrometer: Used to measure outside dimensions such as shaft diameter, material thickness, and the outside diameter of components.
• Inside Micrometer: Used to measure internal dimensions such as the diameter of holes and bores.
• Depth Micrometer: Used to measure the depth of holes, slots, recesses, and steps.
• Thread Micrometer: Designed to measure the pitch diameter of threaded components.
• Digital Micrometer: Displays the measurement electronically, making the reading easier to interpret.

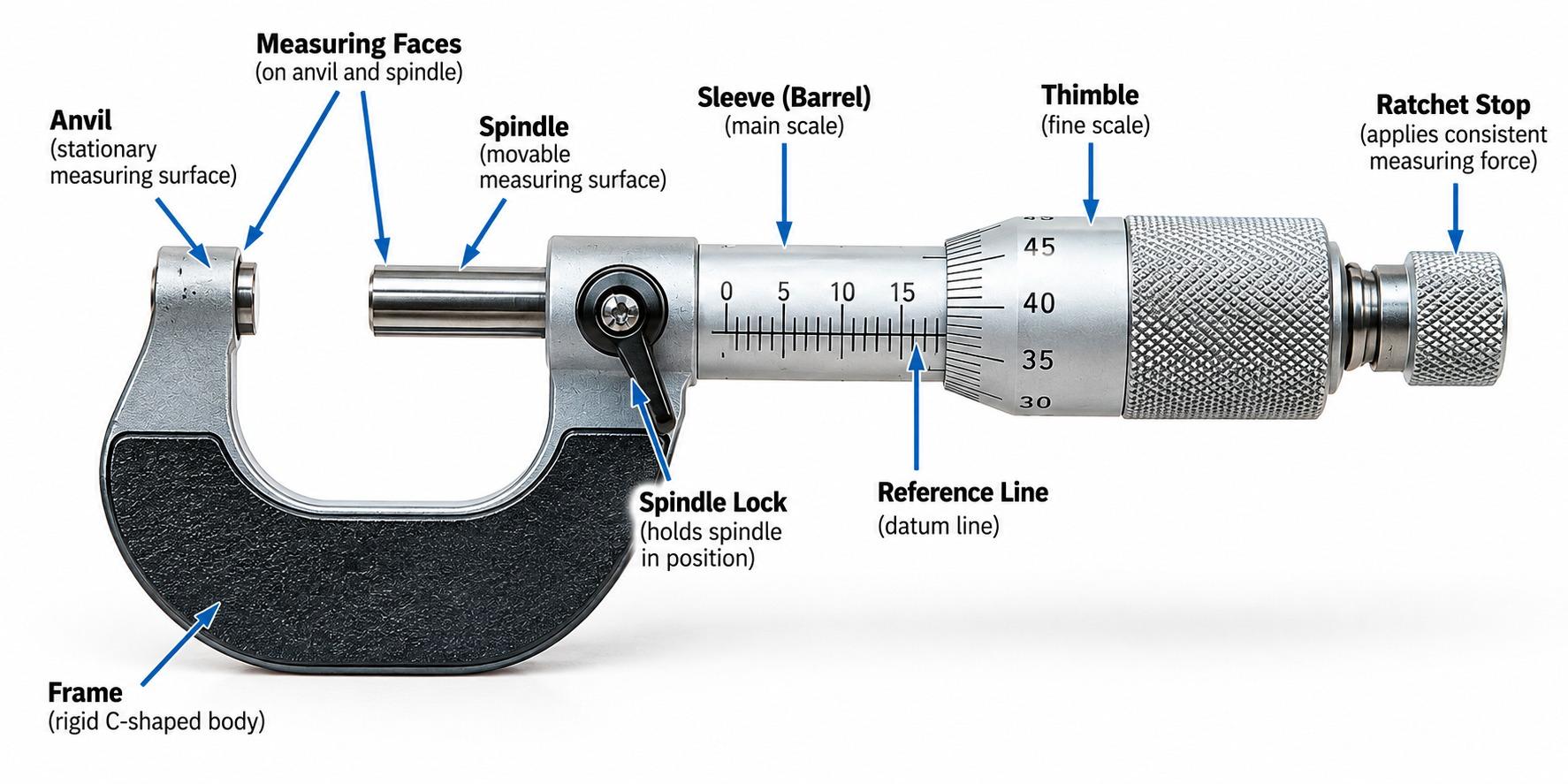

Know the Parts of a Micrometer

Before learning how to read the scale, it helps to become familiar with the main parts of the instrument.

Frame

The frame is the rigid C-shaped body of the micrometer. It supports the anvil, spindle, sleeve, and other components and keeps the measuring mechanism aligned.

Anvil

The anvil is the fixed measuring surface. The workpiece is placed against the anvil while the spindle moves toward it.

Spindle

The spindle is the movable measuring component. It moves toward or away from the anvil when the thimble is rotated.

Measuring Faces

The measuring faces are the precision surfaces that make contact with the workpiece. One is located on the anvil and the other on the spindle.

Sleeve or Barrel

The sleeve, sometimes called the barrel, contains the main scale. On a typical metric micrometer, the sleeve shows millimeter and half-millimeter graduations.

Thimble

The thimble is the rotating part of the micrometer. Its graduated scale provides the additional measurement needed to obtain the final reading.

Ratchet Stop

The ratchet stop is used to apply a consistent measuring force. It helps prevent excessive tightening when the spindle contacts the workpiece.

Spindle Lock

The spindle lock holds the spindle in position after a measurement has been established. It can be useful when you need to remove the micrometer from the workpiece before recording the measurement.

What Is Least Count?

The least count is the smallest measurement that a measuring instrument can resolve on its scale. It tells you how finely the instrument is graduated.

For example, a common metric micrometer has a least count of 0.01 mm. This means the scale is divided into increments of 0.01 mm.

How to Calculate Least Count

For a conventional micrometer, the least count can be calculated using:

Least Count = Screw Pitch ÷ Number of Thimble Divisions

For example, if the spindle moves 0.5 mm during one complete revolution and the thimble has 50 divisions:

0.5 mm ÷ 50 = 0.01 mm

Least Count Is Not the Same as Accuracy

Least count and accuracy are different specifications. Least count describes the smallest graduation or resolution of the instrument, while accuracy describes how closely the measurement agrees with the actual dimension.

Therefore, a micrometer with a 0.01 mm least count should not automatically be described as being accurate to exactly 0.01 mm. Always check the manufacturer's specifications for the instrument's accuracy and tolerance.

How to Prepare a Micrometer for Measurement

Proper preparation is important because dirt, chips, oil, or incorrect zero adjustment can affect the measurement.

1. Clean the Measuring Faces

Wipe the anvil and spindle measuring faces with a clean, soft cloth. Remove any chips, dirt, oil, or other material that could create a gap between the measuring faces and the workpiece.

2. Clean the Workpiece

Make sure the surface being measured is clean. Even a small chip or particle between the workpiece and measuring faces can produce an incorrect reading.

3. Check the Zero

Before taking a measurement, close the measuring faces carefully and check the zero position.

When the measuring faces are properly closed, the zero mark should align with the reference line. If the zero does not align, the instrument may have zero error and should be adjusted or its zero error should be accounted for according to the manufacturer's instructions.

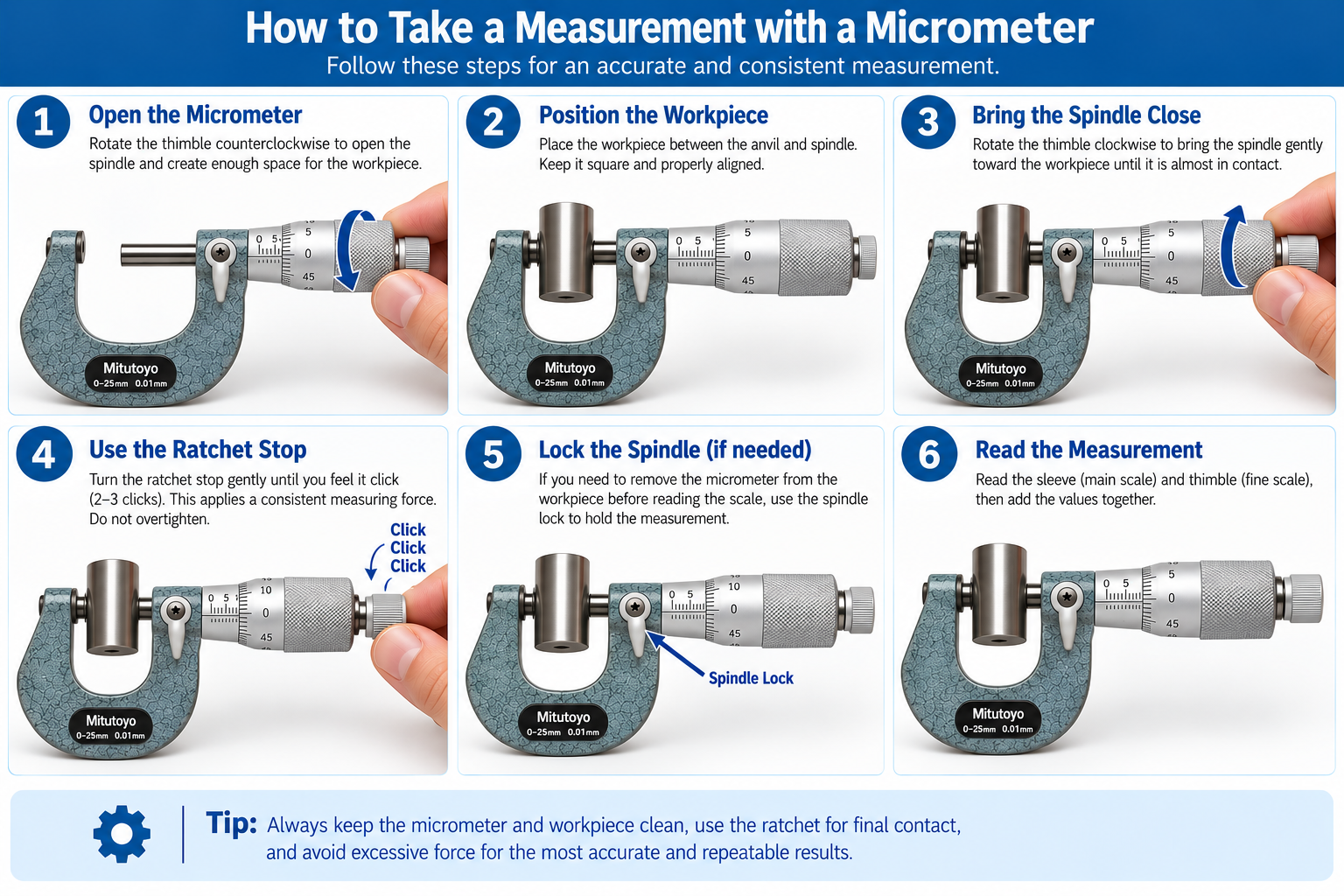

How to Take a Measurement With a Micrometer

Once the micrometer and workpiece are clean, follow these steps.

1. Open the Micrometer

Rotate the thimble to create enough space between the anvil and spindle for the workpiece.

2. Position the Workpiece

Place the part between the anvil and spindle. Make sure the area being measured is positioned correctly between the measuring faces.

3. Align the Micrometer Correctly

Proper alignment is essential. For example, when measuring the diameter of a round shaft, keep the micrometer square to the shaft rather than holding it at an angle.

Incorrect alignment can cause the measuring faces to contact the workpiece incorrectly and produce a misleading measurement.

4. Bring the Spindle Close to the Workpiece

Rotate the thimble until the spindle approaches the workpiece. Do not force the spindle against the part.

5. Use the Ratchet Stop for the Final Measurement

Once the spindle is close to the workpiece, use the ratchet stop to make the final contact. Turn it gently until the ratchet operates as designed.

The ratchet helps provide a more consistent measuring force. Avoid using excessive force because overtightening can affect the measurement and potentially damage the instrument or workpiece.

6. Lock the Spindle if Necessary

If you need to remove the micrometer from the workpiece while keeping the established measurement, use the spindle lock.

How to Read a Metric Micrometer

Reading a metric micrometer involves combining the main scale reading from the sleeve with the thimble reading.

The basic formula is:

Final Reading = Main Scale Reading + Thimble Reading

The thimble reading is calculated by multiplying the number of visible thimble divisions by the least count.

Thimble Reading = Thimble Division × Least Count

Step 1: Read the Main Scale

Look at the sleeve and identify the last fully visible millimeter mark before the edge of the thimble.

Step 2: Check the Half-Millimeter Mark

Check whether the 0.5 mm graduation is also visible. If it is visible, add 0.50 mm to the main scale reading.

Step 3: Read the Thimble Scale

Look at the thimble graduation that aligns with the reference line on the sleeve. Multiply that division by the micrometer's least count.

Step 4: Add the Readings

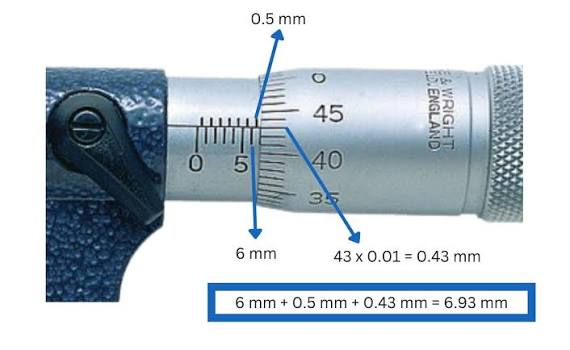

Suppose the micrometer shows:

• Main scale reading = 6.00 mm
• Half-millimeter mark = 0.50 mm
• Thimble reading = 43 divisions
• Least count = 0.01 mm

First calculate the thimble reading:

43 × 0.01 mm = 0.43 mm

Now add all the values:

6.00 + 0.50 + 0.43 = 6.93 mm

Therefore, the final measurement is 6.93 mm.

How to Read an Imperial Micrometer

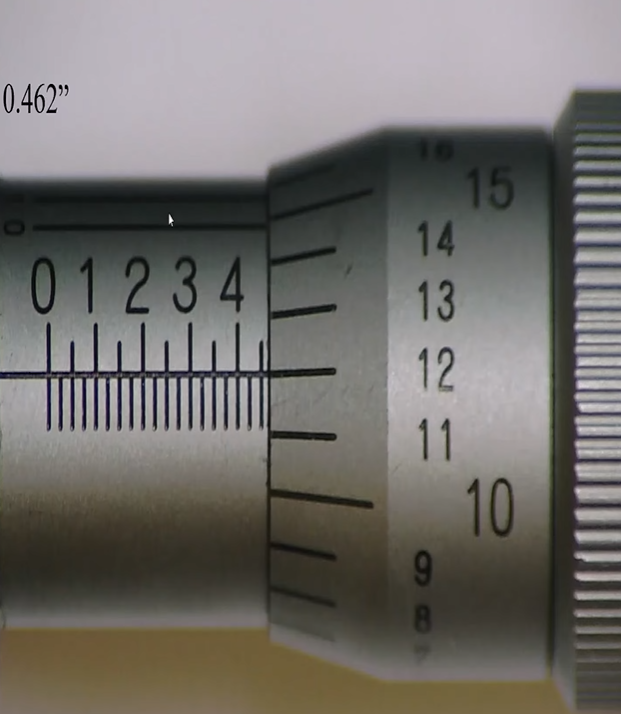

Imperial micrometers are read using inches rather than millimeters. The same basic principle applies: read the sleeve and then add the thimble reading.

A common imperial micrometer has a least count of 0.001 inch, although the exact specification depends on the instrument.

Example

Suppose the sleeve reading is 0.325 inch and the thimble indicates 8 divisions on a 0.001-inch micrometer.

0.325 + (8 × 0.001) = 0.333 inch

The final measurement is 0.333 inch.

How to Read a Vernier Micrometer

A vernier micrometer includes an additional vernier scale that allows the user to read a smaller increment than the primary thimble scale.

First read the main sleeve scale, then the thimble scale, and finally identify the vernier graduation that aligns with a thimble graduation. The exact least count varies by instrument, so always check the markings and specifications of the particular micrometer.

Example

If the readings are:

• Main scale = 12.50 mm
• Thimble = 0.23 mm
• Vernier = 0.003 mm

12.50 + 0.23 + 0.003 = 12.733 mm

The final reading would be 12.733 mm.

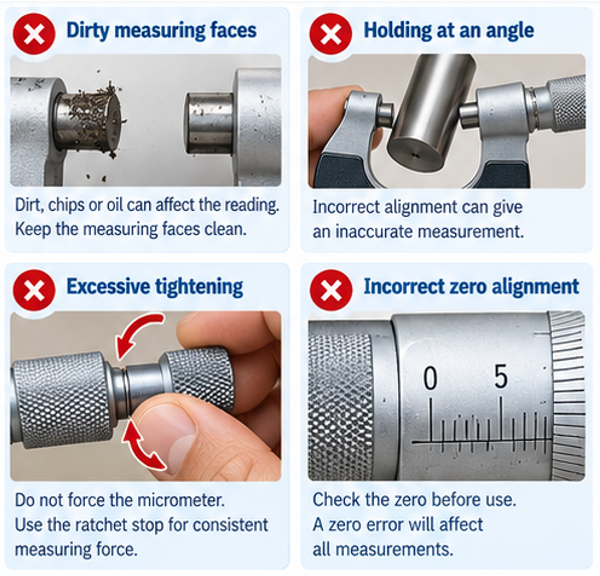

Common Mistakes When Using a Micrometer

Dirty Measuring Faces

Dirt, chips, dust, or oil between the measuring faces and workpiece can change the measurement. Always clean the contact surfaces before measuring.

Holding the Micrometer at an Angle

Incorrect alignment can produce an incorrect measurement, particularly when measuring round components.

Overtightening

Do not force the spindle against the workpiece. Use the ratchet stop for the final contact and apply consistent, appropriate measuring force.

Ignoring Zero Error

Always check the zero before taking measurements. If the zero is incorrect, the resulting readings may also be incorrect.

Reading the Wrong Thimble Graduation

Make sure you read the graduation that aligns with the reference line rather than simply selecting the nearest visible number.

Tips for More Accurate Micrometer Measurements

• Clean the micrometer before use.
• Clean the workpiece before measuring.
• Check the zero position before taking measurements.
• Keep the micrometer properly aligned with the workpiece.
• Use the ratchet stop for the final measuring force.
• Do not overtighten the spindle.
• Take multiple measurements when checking critical dimensions.
• Allow the instrument and workpiece to reach a suitable temperature when making high-precision measurements.
• Keep the micrometer clean and protected when it is not being used.

Micrometer vs. Caliper: What's the Difference?

Both micrometers and calipers are useful precision measuring tools, but they are suited to different applications.

Feature	Micrometer	Caliper
Typical use	Precision measurement	General-purpose measurement
Measurement range	Usually more limited	Generally wider
Precision	Typically higher	Typically lower than a micrometer for fine measurements
Best for	Fine dimensional checks	Quick inside, outside, depth, and step measurements

Micrometer Reading: Quick Reference

Frequently Asked Questions

What is the least count of a micrometer?

A common mechanical metric micrometer has a least count of 0.01 mm, while a common imperial micrometer may have a least count of 0.001 inch. However, specifications vary, so check the particular instrument.

What is the difference between least count and accuracy?

Least count is the smallest scale increment that the instrument can resolve. Accuracy refers to how closely the measurement represents the actual dimension. They are not the same specification.

Why is the ratchet stop used?

The ratchet stop helps apply a more consistent measuring force during the final part of the measurement and helps prevent excessive tightening.

Why should I check the zero before measuring?

A zero error can affect every measurement taken with the instrument. Checking the zero helps identify this problem before measurements are recorded.

Can a micrometer measure inside dimensions?

Yes. Inside micrometers are specifically designed for measuring internal dimensions such as holes and bores. Different micrometer designs are available for different measurement applications.

Which is more accurate, a micrometer or a caliper?

A micrometer is generally preferred when a finer dimensional measurement is required. Calipers are more versatile and typically provide a wider range of measurement functions.

Final Takeaway

Reading a micrometer becomes much easier once you understand what each part does and how the scales work together.

For a metric micrometer, start with the main scale, check the half-millimeter graduation, read the thimble, multiply the thimble division by the least count, and add the values together.

Most importantly, accurate readings depend on more than simply reading the scale. Keep the measuring faces and workpiece clean, check the zero, maintain proper alignment, and use the ratchet stop rather than excessive force.

With the right technique, a micrometer can provide highly precise dimensional measurements for machining, manufacturing, inspection, and other precision applications.
