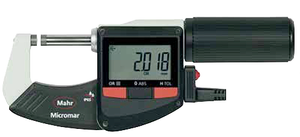

Mahr Micromar 40 EWR Digital Micrometer, 7"-8"/175mm-200mm - 4157007

Brand:   Mahr
SKU:
4157007
ID:
354466
Error Limit 7 µm
callling
$1,195.00
Current Stock:
Adding to cart… The item has been added

Mahr

 Mahr Micromar 40 EWR Digital Micrometer, 7"-8"/175mm-200mm - 4157007

The NEW Micromar 40 EWR micrometer with data output incorporates an extra large display, a reference system that retains the zero position setting and lock feature to prevent user error. It also incorporates new MarConnect data output where data collection is selected by cable – either USB, RS-232C, or Digimatic.

RESET (set display to zero), ABS (display can be set to zero without losing reference to ORIGIN), mm/inch, ORIGIN (for entering a numerical value), LOCK function (key lock), TOL (tolerance and warning limits), HOLD (storage of measured values), DATA (data transmission via connection cable), Bi-directional data interface (external input option of characteristic values and setting of individual lock functions by software MarCom)

  • High contrast analog display
  • Resolution: 0.00005”/0.001mm
  • Spindle Thread Pitch: 0.5mm
  • Measuring Force: 5N - 10N
  • Stainless spindle is hardened throughout and ground
  • Spindle and anvil are carbide-tipped
  • Rapid drive
  • Ratchet is integrated in the thimble
  • Lacquered steel frame, heat insulated
  • Data interface MarConnect (bidirectional), USB, Digimatic
  • Battery life approx. 2 years

For More Mahr 40 EWR Micromar Digital Micrometers Click Here
