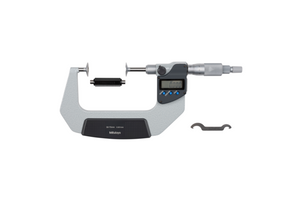

Mitutoyo Disc Micrometer, IP65, 50-75mm - 369-252-30

Brand:   Mitutoyo
SKU:
369-252-30
ID:
366549
Range 50 - 75 mm
Accuracy ±6μm
callling
$922.00
Current Stock:
Adding to cart… The item has been added

Mitutoyo

Mitutoyo Disc Micrometer, IP65, 50-75mm - 369-252-30

This Digimatic Disc Micrometer allows you to measure a range of different materials.

It offers you the following benefits:

  • Non-rotating spindle and disc-shaped measuring surfaces.
  • Measuring the root tangent length of spur and helical gears
  • Measurable range of gear pitch: 0,5-6 module
  • Suitable for measuring felt, rubber, cardboard, fabric etc.
  • Disc is 20mm
Accuracy ±6 µm
Flatness 1 µm
Parallelism 6 µm
Range 50 - 75 mm
Digital step 0,001 mm
Battery life Approx. 2,4 years
Measurable module 0.5-6
Delivered Including box, setting standard (from 25 mm upward), key, 1 battery
Function lock Yes
HOLD Yes
ORIGIN Yes
ZERO/ABS Yes
Auto Power OFF
after 20 min. non use
Yes
Low voltage alarm Yes
Data output Yes
Digital/Analog Digital
Inch-Metric Metric
Scale Thimble and sleeve satin chrome finish, ø18 mm
Measuring spindle ø8 mm, non-rotating, spindle pitch 0,5 mm



L:
108.5
a:
12.9
b:
11.2 mm
c:
60


See all Mitutoyo Disk Micrometers Series 369, 227, 169
