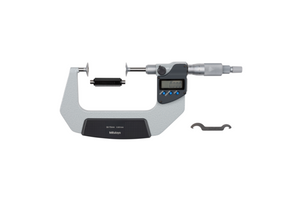

Mitutoyo Disc Micrometer, IP65, 75-100mm - 369-253-30
Brand: Mitutoyo- SKU:
- 369-253-30
- ID:
- 366551
| Range | 75 - 100 mm |
| Accuracy | ±6μm |
$969.00
Mitutoyo Disc Micrometer, IP65, 75-100mm - 369-253-30
This Digimatic Disc Micrometer allows you to measure a range of different materials.
It offers you the following benefits:
- Non-rotating spindle and disc-shaped measuring surfaces.
- Measuring the root tangent length of spur and helical gears
- Measurable range of gear pitch: 0,5-6 module
- Suitable for measuring felt, rubber, cardboard, fabric etc.
| Accuracy | ±6 µm |
| Flatness | 1 µm |
| Parallelism | 6 µm |
| Range | 75 - 100 mm |
| Digital step | 0,001 mm |
| Battery life | Approx. 2,4 years |
| Measurable module | 0.5-6 |
| Delivered | Including box, setting standard (from 25 mm upward), key, 1 battery |
| Function lock | Yes |
| HOLD | Yes |
| ORIGIN | Yes |
| ZERO/ABS | Yes |
| Auto Power OFF after 20 min. non use | Yes |
| Low voltage alarm | Yes |
| Data output | Yes |
| Digital/Analog | Digital |
| Inch-Metric | Metric |
| Scale | Thimble and sleeve satin chrome finish, ø18 mm |
| Measuring spindle | ø8 mm, non-rotating, spindle pitch 0,5 mm |
| L: | 112.5 |
| a: | 5.5 |
| b: | 13.5 mm |
| c: | 60 |
