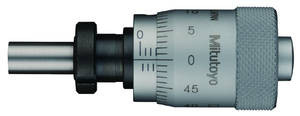

Mitutoyo Micrometer Head, Large Thimble Type, 0-13mm - 148-310

Brand:   Mitutoyo
SKU:
148-310
ID:
386232
Range 0 - 13 mm
Accuracy ±2μm
Stem Dia. 9.5mm
Stem w/ clamp nut
Spindle Face Flat
Thimble Dia. 20mm
$80.55
Current Stock:
Adding to cart… The item has been added

Mitutoyo

Mitutoyo Micrometer Head, Large Thimble Type, 0-13mm - 148-310

Short thimble type with thimble diameter options.

Specifications

Range 0 - 13 mm
Spindle end Flat
Stem Ø 9,5 mm
Stem
w/ clamp nut
Thimble Ø
20 mm
Fixture thickness
for clamp nut
6 mm
Mass 55 g
Measuring surfaces Tool steel
Spindle pitch 0,5 mm
Maximum Permissible Error J MPE ±2 µm
Graduation 0.01 mm
Digital/Analog Analog
Inch-Metric Metric
Special features -



See all Mitutoyo Micrometer Heads - Series 148 (Large Thimble Diameter for Easy Reading)
