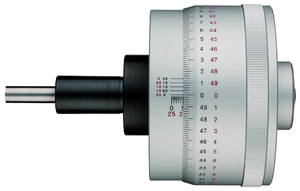

Mitutoyo Micrometer Head, Non-rotating Spindle, 0-1" - 153-302
Brand: Mitutoyo- SKU:
- 153-302
- ID:
- 386613
| Range | 0 - 1" |
| Accuracy | ±.00004" / ±.00002" |
| Stem Dia. | .709" |
| Stem | Plain |
| Spindle Face | Flat (carbide tip) |
| Remarks | Bidirectional graduation |
$1,380.95
Mitutoyo Micrometer Head, Non-rotating Spindle, 0-1" - 153-302
- Extra-large-diameter micrometer head with non-rotating spindle.
Specifications
| Range | 0 - 1" |
| Spindle end | Flat (carbide tip) |
| Stem Ø | .709" |
| Stem | Plain |
| Special features | Bidirectional graduation |
| Mass | - g |
| Spindle pitch | 0.025 in |
| Measuring surfaces | Carbide-tipped |
| Maximum Permissible Error J MPE | ±0,00005"/ ±0,00003" |
| Graduation | 0.00001 in |
| Accuracy* | ±.00004" / ±.00002" |
| Digital/Analog | Analog |
| Inch-Metric | Inch |
*Wide range / narrow range
See all Mitutoyo Micrometer Heads Series 153 - Fine Graduation and High Accuracy
