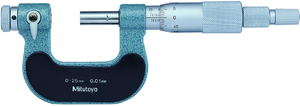

Mitutoyo Pana Micrometer with Interchangeable Anvil, 0-25mm - 116-101
Brand: Mitutoyo- SKU:
- 116-101
- ID:
- 366376
| Range | 0 - 25 mm |
| Graduation | 0.01mm |
| Accuracy | ±4μm |
$567.00
Mitutoyo Pana Micrometer with Interchangeable Anvil, 0-25mm - 116-101
This Universal Micrometer should be used with optional interchangeable tips. It offers you the following benefits:
- Its non-rotating spindle accepts seven forms of optional interchangeable anvil/spindle tip
(including flat, spline, spherical, point, knife-edge, disc, and blade) allowing you to use it in a wide range of applications. - Optional anvils/spindle-tips for screw thread measurement (matching V and cone) are also
available. - With ratchet stop for constant force.
Technical Data:
- Graduation: .001” or 0.01mm
- Spindle feed error: .00012” / 3μm
Optional Accessories:
Interchangeable V-anvil and conical spindle tip set:
- For Metric/Unified screw
Order No. Assortment of anvils and tips 116-830 0.4 - 0.5mm/64 - 48TPI (116-831)
0.6 - 0.9mm/44 - 28TPI (116-832)
1 - 1.75mm/24 - 14TPI (116-833)
2 - 3mm/13 - 9TPI (116-834)
3.5 - 5mm/8 - 5TPI (116-835)
5.5 - 7mm/4.5 - 3.5TPI (116-836) - Interchangeable anvils set
Order No. Assortment of anvils and tips 116-800 Flat anvils (116-801)
Spline anvils (116-802)
Spherical anvils (116-803)
Point anvils (116-804)
Knife-edge anvils (116-805)
Disk anvils (116-806)
Blade anvils (116-807)
Specifications
| Accuracy | ±4 µm |
| Mass | 250 g |
| Range | 0 - 25 mm |
| Graduation | 0,01 mm |
| Delivered | Including box, plain and 60° thread, setting standard (from 25.0 mm upward), key without interchangeable tips |
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Scale | Thimble and sleeve satin chrome finish, ø18 mm |
| Measuring spindle | ø8 mm, non rotating, spindle pitch 0,5 mm |
| Spindle feed error | 3 µm |
See all Mitutoyo Pana Micrometers Series 116, Interchangeable Anvil Type
