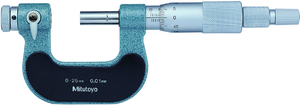

Mitutoyo Pana Micrometers Series 116, Interchangeable Anvil Type

Mitutoyo Pana Micrometers Series 116, Interchangeable Anvil Type

Features:

• Non-rotating spindle with optional seven interchangeable anvils (flat, spline, spherical, point, knife-edge, disk and blade) for a wide range of applications.

• Interchangeable anvils (pair) are optional.

• With a standard bar except 0-1” and 0 - 25 mm model.

• V-anvils and conical spindle tips (matching pair) for screw thread measurement are also available.

• With ratchet stop for constant force.

Technical Data:

• Graduation: .001” or 0.01mm

• Spindle feed error: .00012” / 3μm

Optional Accessories:

• Interchangeable V-anvil and conical spindle tip set:

  For Metric/Unified screw


  Order No.	Assortment of anvils and tips
  116-830	0.4 - 0.5mm/64 - 48TPI (116-831) 0.6 - 0.9mm/44 - 28TPI (116-832) 1 - 1.75mm/24 - 14TPI (116-833) 2 - 3mm/13 - 9TPI (116-834) 3.5 - 5mm/8 - 5TPI (116-835) 5.5 - 7mm/4.5 - 3.5TPI (116-836)


  Interchangeable anvils set

  Order No.	Assortment of anvils and tips
  116-800	Flat anvils (116-801) Spline anvils (116-802) Spherical anvils (116-803) Point anvils (116-804) Knife-edge anvils (116-805) Disk anvils (116-806) Blade anvils (116-807)

For more details and Specifications on each item, copy the Item Number below into the search bar at the top of the page.
