Royal Quick-Grip™ Pull-to-a-Stop CNC Collet Chuck, QG-100 Collet, A2-8 Spindle - 46024

Brand:   Royal Products
SKU:
46024
ID:
347444
Collet Type QG-100
Spindle Type A2-8
Overall Length 7.33"
Weight 95 lbs.
callling
$6,995.00
Current Stock:
Adding to cart… The item has been added

Royal Products

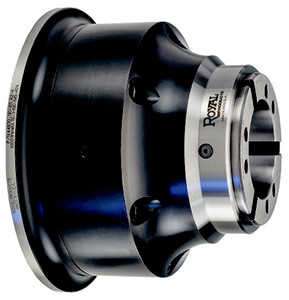

Royal Quick-Grip™ Pull-to-a-Stop CNC Collet Chuck
QG-100 Collet, A2-8 Spindle
46024


Pull-to-a-Stop CNC Collet Chucks offer the same great features as Royal's Accu-Length™ Quick-Grip™ models, except that the collet is not fixed – it moves axially upon opening and closing.


Two-Chucks In One

  • The Royal Quick-Grip™ Pull-to-a-Stop CNC Collet Chuck includes a removable stop for precise, consistent workpiece positioning. The pullback action of the collet draws the workpiece securely against the stop, eliminating any chance of z-axis part movement and enabling very aggressive cutting. When thru-hole capacity is required for bar feeding applications, simply remove the stop and the chuck will function as a normal pullback-style collet chuck.


Features:

  • 10-second collet changes
  • Widest collet gripping range (0.062")
  • Extremely accurate – 0.0002" TIR
  • Parallel workpiece gripping
  • Compact and ultra-compact models to suit all machines and applications
  • Adjustable stop guarantees precise, consistent z-axis part positioning and enables very aggressive cutting
  • Ideal for high-volume, robot-load applications in which the part needs to locate against a shoulder and air-sensing / position confirmation is required.
  • Also a great choice for any CNC lathe equipped with a servo-driven bar feeder – simply remove the included stop for full thru-capacity.


Bolt & Go™

  • Our exclusive Bolt & Go™ mounting feature is standard on all Royal Quick-Grip™ Collet Chuck models. Bolt & Go™ enables chucks to be mounted very quickly and ensures maximum accuracy and rigidity.

Extremely Fast Collet Changes

  • Changing collets on a Royal Quick-Grip™ CNC Collet Chuck takes just a few seconds. A unique hook and groove design for securing collets is used instead of traditional threads.

Wide Gripping Range

  • Royal Quick-Grip™ Collets have a 0.062" gripping range (+/- 0.031"), enabling them to accommodate undersized and oversized bar stock.

Completely Sealed

  • Lubricated for life, these chucks incorporate multiple O-ring seals to keep contaminants out and prevent chip pack-up on bore-thru applications.

High Accuracy

  • Royal Quick-Grip™ CNC Collet Chucks are very accurate – runout on the closing angle is guaranteed to be within 0.0002" TIR.

High RPM

  • All Royal Quick-Grip™ Collet Chucks are balanced by design for high-speed operation, and can often be run at higher speeds than conventional 3-jaw chucks because they are less affected by centrifugal force.

Low-Profile

  • Royal Quick-Grip™ CNC Collet Chucks have smaller nose diameters than other quick change collet chucks for superior tool clearance.

Collet Compatibility

  • Royal Quick-Grip™ Collet Chucks can sometimes utilize other brands of quick-change collets. Call Royal to verify.

Heavy-Duty Construction

  • All chuck components, except for the drawtube connector, are hardened to Rc 61-63 for high rigidity and durability.

Coolant Slinger

  • All bodies incorporate an oversized flange to protect the machine tool spindle bearings from coolant penetration.

Shortest Length

  • Royal Quick-Grip™ CNC Collet Chucks are among the shortest chucks available, providing maximum work envelope utilization. This is especially important for smaller machines with limited z-axis travel.

Easy Installation

  • Royal Quick-Grip™ Collet Chucks include all mounting hardware, mounting wrenches, and a custom-machined drawtube connector to ensure hassle-free installation.


Click to View More Information & Benefits



Specifications:

Item Number 46024
Collet Type QG-100
Spindle Type A2-8
Max. Capacity - Bar 4.03"
Max. Capacity - Slug 5.15"
A - Overall Length 7.33"
B - Nose Diameter 6.30"
C - Nose Length 0.80"
D - Body Diameter 9.40"
E - Flange Diameter 10.75"
Chuck Weight 95 lbs.
Max. Drawbar Force 14,610 lbs.
Max. Clamping Force 33,720 lbs.
Max. RPM 5,000


Price includes drawtube connector. Collets sold separately.
Slug capacity requires counterboring of collets.



See all Royal Quick-Grip™ Pull-to-a-Stop CNC Collet Chucks
