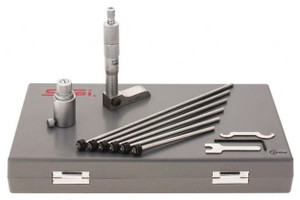

SPI Half Base Depth Micrometer, 0-6" - 17-921-8
Brand: SPI Swiss Precision Instruments- SKU:
- 17-921-8
- ID:
- 349819
| Range | 0 - 6" |
| Rods | 6 |
$299.95
SPI Half Base Depth Micrometer, 0-6"
Half base permits measuring depths of holes and slots close to shoulders and in between obstructions. Quick reading graduations.
Features:
- Graduations: 0.001"
- Accuracy: ±0.0002"
- Base: 0.645" wide x 2.25" long
- Ratchet stop
- Flat end rods
- Torque wrench included
- Short Form Certificate of Calibration included
- Furnished in fitted case
- 2 year warranty
Specifications:
| Minimum Measurement (Decimal Inch) | 0.00 |
| Maximum Measurement (Decimal Inch) | 6.00 |
| Base Length (Inch) | 2-1/4 |
| Base Length (Decimal Inch) | 2.2500 |
| Features | None |
| Rod Type | Rotating |
| Number of Rods | 6 |
| Thimble Type | Ratchet Stop |
| Graduation (Decimal Inch) | 0.00100 |
| Rod Diameter (mm) | 4.50 |
| Rod Diameter (Decimal Inch) | 0.1760 |
| Accuracy (Decimal Inch) | 0.000200 |
| Measuring Face Material | Hardened Steel |
| Traceability Certification Included | NIST |
See all SPI Half Base Depth Micrometers
